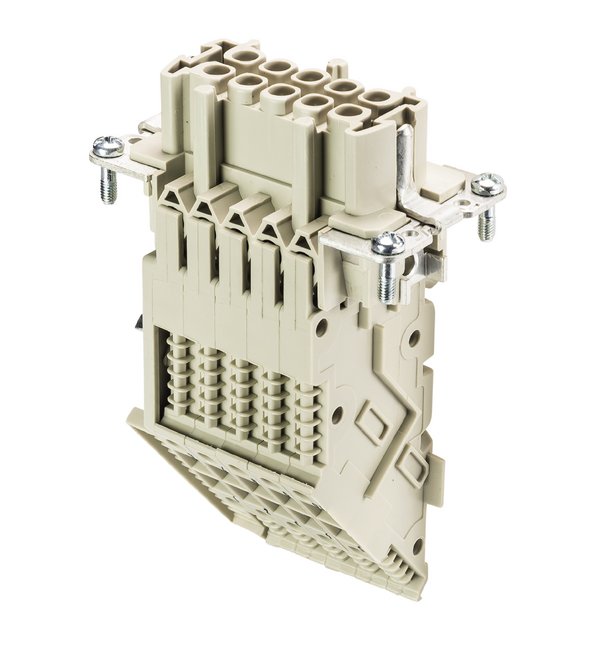

Wieland BAS SAS LL 24 4.0 50 Pin Insert Multi-Pole Adapter
Wieland BAS SAS LL 24 4.0 50 Pin Insert Multi-Pole Adapter
SKU:IND-84e21b
Enhance industrial connectivity with Wieland BAS SAS LL 24 4.0 Adapter, featuring 24 poles, UL94 V2 insulation, and robust screw connections.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Wieland BAS SAS LL 24 4.0 50 Pin Insert Multi-Pole Adapter
$45.99
Quantity: 1
Claim Your Seller Account
Wieland BAS SAS LL 24 4.0 50 Pin Insert Multi-Pole Adapter
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial connectivity with the Wieland BAS SAS LL 24 4.0 50 Pin Insert Multi-Pole Adapter. This adapter features a long design with 24 poles plus ground, male insert with ground left orientation, and robust screw connections for secure installations. With UL94 V2 rated insulation, copper alloy contacts, and a wide operating temperature range (-40°C to 120°C), this adapter ensures reliable performance in diverse environments. Compliant with UL and CSA standards, this Wieland adapter is ideal for industrial multipole connector applications requiring high voltage (600V) and current (16A) ratings.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Screw Connection
Connection Data Maximum Solidstranded Conductor Cross Section
4 mm²
Connection Data Minimum Solidstranded Conductor Cross Section
0.5 mm²
Connection Data Number Of Poles
24
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
24
Connection Data With Wire Protection
Yes
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠3 mΩ
Contacts Surface
Tin-Plated
Contacts Wire Strip Length
12 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V2
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
BAS SAS LL 24 4.0 50 Pin Insert
General Modular Version
No
General Pollution Degree
3
General Size In Accordance With Din 43880
24
Model Construction Type
Long Design (6 Marking Fields)
Model Position Of Protective Conductor
Left
Model With Housing
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Screws Head Design Clamping Screws Recommended Torque Slot
M3/0.5-0.7 N·m
Screws Head Design Ground Conductor Screws Recommended Torque
H2/1.2-1.6 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
500 V
Technical Data Din En 61984 Nominal Voltage
500 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
