Wieland BAS STC 6 50 Industrial Connector Insert
Wieland BAS STC 6 50 Industrial Connector Insert
SKU:IND-731411
Reliable Wieland BAS STC 6 50 Industrial Connector Insert designed for industrial use, 6-poles, 16A, 500V, tin-plated contacts.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland BAS STC 6 50 Industrial Connector Insert
$29.99
Quantity: 1
Claim Your Seller Account
Wieland BAS STC 6 50 Industrial Connector Insert
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

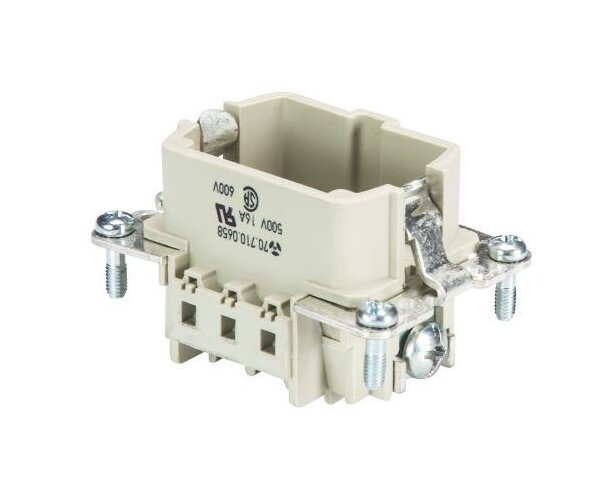

The Wieland BAS STC 6 50 Industrial Connector Insert is a robust male insert designed for industrial applications, featuring 6 poles with a rated current of 16A and a rated voltage of 500V. With tin-plated contacts ensuring excellent conductivity and durability, this connector insert is built to withstand demanding environmental conditions. It meets V0 standard for inflammability class of insulation material according to UL94, offering reliable performance with a temperature range from -40°C to 120°C. The crimp connection type and protective contact enhance safety and efficiency in industrial settings, making it an ideal choice for multipole connector requirements.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Crimp
Connection Data Number Of Poles
6
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
6
Connection Data With Wire Protection
No
Contacts Contact Resistance
⤠1.5 mΩ
Contacts Wire Strip Length
7 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Mating Cycles
200
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
MALE INSERT BAS STC 6 50
General Modular Version
No
General Pollution Degree
3
General Type
Male Insert
Model With Housing
No
Screws Head Design Ground Conductor Screws
H2/1.2-1.6 N·m
Screws Head Design Mounting Screws
H1/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
500 V
Technical Data Din En 61984 Nominal Current
16 A
Technical Data Din En 61984 Nominal Voltage
500 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
20-12 AWG
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
4 mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
0.5 mm²
Technical Data Ulcsa Rated Current According Canadian Standards
16 A
Technical Data Ulcsa Rated Current According Underwriters Labora
16 A
