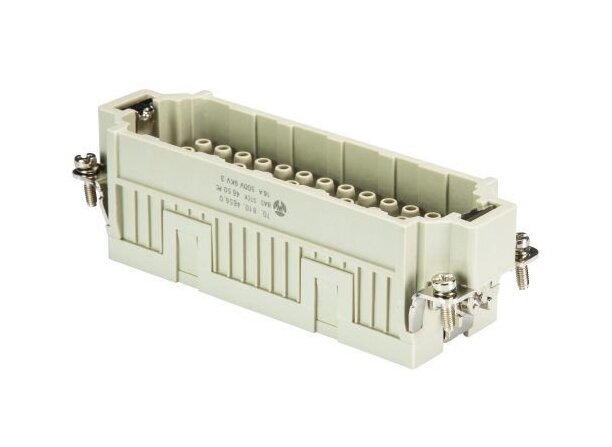

Wieland BAS STCK 46 50 Industrial Connector Insert
Wieland BAS STCK 46 50 Industrial Connector Insert
SKU:IND-e05529
High-quality Wieland BAS STCK 46 50 Industrial Connector Insert with 46 poles, 16A current, and 500V voltage rating. V0 inflammability class and UL/CSA compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland BAS STCK 46 50 Industrial Connector Insert
$29.99
Quantity: 1
Claim Your Seller Account
Wieland BAS STCK 46 50 Industrial Connector Insert
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland BAS STCK 46 50 Industrial Connector Insert is a reliable solution for industrial multipole connectors. This male insert features 46 poles, a rated current of 16A, and a rated voltage of 500V with gold-plated or silver-plated contacts for enhanced conductivity. With a V0 inflammability class of insulation material and compliance with various technical standards, including UL/CSA and DIN EN 61984, this connector insert ensures safety and performance in demanding industrial environments.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Crimp
Connection Data Number Of Poles
46
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
46
Connection Data With Wire Protection
No
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠1.5 mΩ
Contacts Surface
Silver And/or Gold Plated
Contacts Wire Strip Length
7 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
MALE INSERT BAS STCK 46 50
General Modular Version
No
General Pollution Degree
3
General Type
Male Insert
Model With Housing
No
Product Compliance Reach Svhc Conformity Status
Compliant
Technical Data Din En 61984 Maximum Rated Voltage Faceground
500 V
Technical Data Din En 61984 Nominal Current
16 A
Technical Data Din En 61984 Nominal Voltage
500 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
20-12 AWG
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
4 mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
0.5 mm²
Technical Data Ulcsa Rated Current According Canadian Standards
16 A
