Wieland BAS STF 10 2.5 50 Industrial Connector Insert
Wieland BAS STF 10 2.5 50 Industrial Connector Insert
SKU:IND-baadb4
High-quality Wieland 10-pole industrial connector insert with 16A/500V rating, tin-plated contacts, and RoHS compliant.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
Wieland BAS STF 10 2.5 50 Industrial Connector Insert
$32.99
Quantity: 1
Claim Your Seller Account
Wieland BAS STF 10 2.5 50 Industrial Connector Insert
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

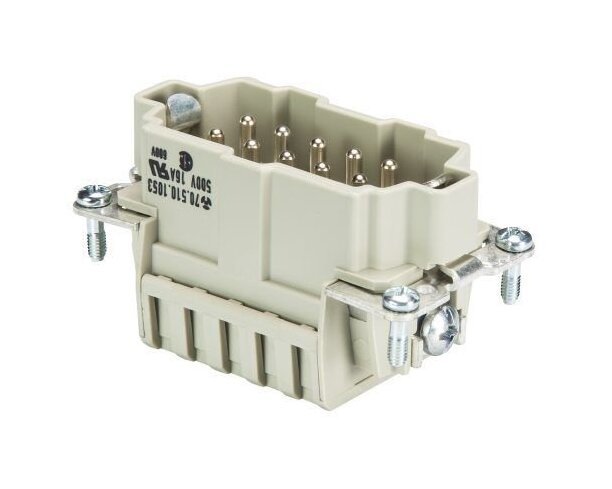

The Wieland BAS STF 10 2.5 50 Industrial Connector Insert is a high-quality male insert designed for industrial applications. This 10-pole connector features a rated current of 16A and a rated voltage of 500V, ensuring reliable performance. With tin-plated contacts, it offers excellent conductivity and durability. The spring clamp connection type and wire protection enhance ease of installation and maintenance. This gray connector insert is rated for a wide operating temperature range from -40°C to 120°C, making it suitable for various industrial environments. Compliant with UL94 V2 inflammability class and RoHS standards, this connector meets stringent industry requirements for safety and environmental responsibility.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Spring Clamp Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
2.5 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
0.5 mm²
Connection Data Number Of Poles
10
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
10
Connection Data With Wire Protection
Yes
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠3 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
7 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V2
General Mating Cycles
500
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
MALE INSERT BAS STF 10 2,5 50
General Modular Version
No
General Pollution Degree
3
General Type
Male Insert
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Din En 61984 Maximum Rated Voltage Faceground
500 V
Technical Data Din En 61984 Nominal Current
16 A
Technical Data Din En 61984 Nominal Voltage
500 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
26-12 AWG
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
2.5 mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
0.14 mm²
