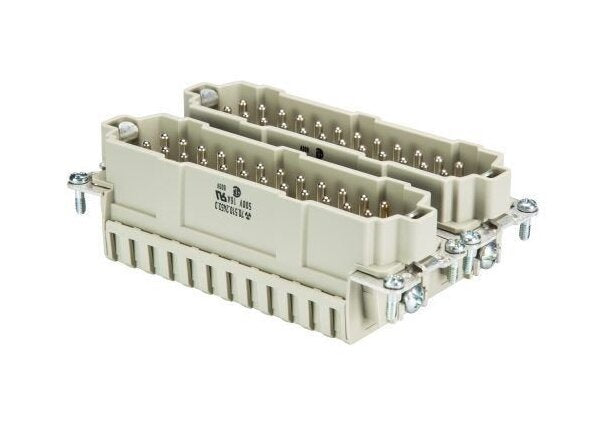

Wieland BAS STF 48 Industrial Connector Insert
Wieland BAS STF 48 Industrial Connector Insert
SKU:IND-8c6028
High-performance Wieland BAS STF 48 Industrial Connector Insert with 48 poles, 16A current, and 500V voltage for secure industrial connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland BAS STF 48 Industrial Connector Insert
$24.99
Quantity: 1
Claim Your Seller Account
Wieland BAS STF 48 Industrial Connector Insert
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland BAS STF 48 Industrial Connector Insert is a high-performance male insert featuring 48 poles with a rated current of 16A and a rated voltage of 500V. Designed for industrial multipole connectors, this connector insert comes with tin-plated contacts for enhanced conductivity and durability. With a spring clamp connection type and protective contact feature, it ensures secure and reliable connections. Operating within a temperature range of -40°C to 120°C, this insert meets stringent technical standards like UL and CSA for rated current and voltage. Its copper alloy contact material with silver-plated surface offers low contact resistance, making it ideal for industrial applications requiring precision and safety.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Spring Clamp Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
2.5 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
0.5 mm²
Connection Data Number Of Poles
48
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
48
Connection Data With Wire Protection
Yes
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠3 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
7 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V2
General Mating Cycles
500
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
MALE INSERT BAS STF 48 2,5 50
General Modular Version
No
General Pollution Degree
3
General Type
Male Insert
Model With Housing
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Screws Head Design Ground Conductor Screws
H2/1.2-1.6 N·m
Screws Head Design Mounting Screws
H1/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
500 V
Technical Data Din En 61984 Nominal Current
16 A
Technical Data Din En 61984 Nominal Voltage
500 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
