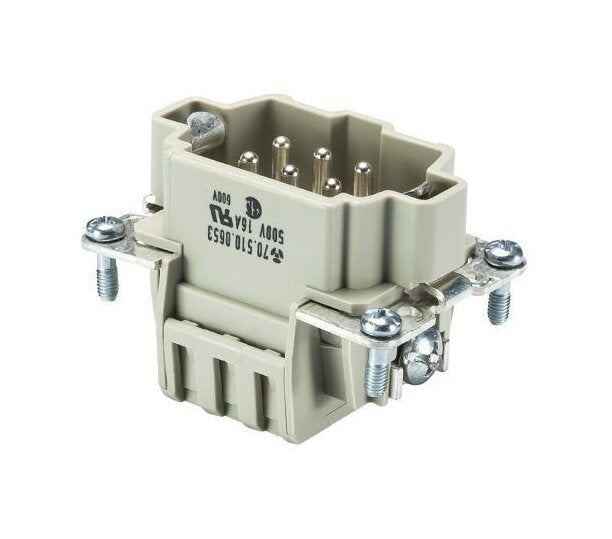

Wieland BAS STF 6 2.5 50 Industrial Connector Insert
Wieland BAS STF 6 2.5 50 Industrial Connector Insert
SKU:IND-e9d9ea
Reliable Wieland 6-pole 16A 500V Industrial Connector Insert with tin-plated contacts and spring clamp connection.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Wieland BAS STF 6 2.5 50 Industrial Connector Insert
$34.99
Quantity: 1
Claim Your Seller Account
Wieland BAS STF 6 2.5 50 Industrial Connector Insert
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland BAS STF 6 2.5 50 Industrial Connector Insert is a reliable solution for industrial applications. With a 6-pole design, rated current of 16A, and rated voltage of 500V, this male insert ensures secure connections. Featuring tin-plated contacts and a spring clamp connection type, it offers easy installation and robust wire protection. Compliant with UL94 V2 inflammability class, UL/CSA standards for current and voltage ratings, ECLASS, ETIM classifications, and RoHS conformity, this connector insert meets stringent industry requirements.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Spring Clamp Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
2.5 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
0.5 mm²
Connection Data Number Of Poles
6
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
6
Connection Data With Wire Protection
Yes
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠3 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
7 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V2
General Mating Cycles
500
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
MALE INSERT BAS STF 6 2,5 50
General Modular Version
No
General Pollution Degree
3
General Type
Male Insert
Model With Housing
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Screws Head Design Ground Conductor Screws
H2/1.2-1.6 N·m
Screws Head Design Mounting Screws
H1/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
500 V
Technical Data Din En 61984 Nominal Current
16 A
Technical Data Din En 61984 Nominal Voltage
500 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
