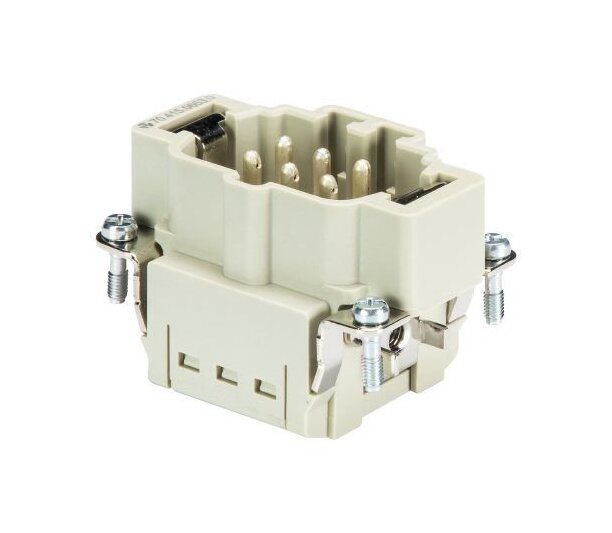

Wieland BAS STP 6 2.5 50 AG Industrial Connector Insert - Male, 6-Poles
Wieland BAS STP 6 2.5 50 AG Industrial Connector Insert - Male, 6-Poles
SKU:IND-a27a7f
Wieland BAS STP 6 2.5 50 AG Industrial Connector Insert - reliable, durable, and compliant with industrial standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland BAS STP 6 2.5 50 AG Industrial Connector Insert - Male, 6-Poles
$24.99
Quantity: 1
Claim Your Seller Account
Wieland BAS STP 6 2.5 50 AG Industrial Connector Insert - Male, 6-Poles
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland BAS STP 6 2.5 50 AG Industrial Connector Insert is a top-quality male insert designed for industrial use. With a rated current of 16A and a rated voltage of 500V, this connector ensures reliable power transmission. Featuring silver-plated contacts for enhanced conductivity, it offers durability with 500 mating cycles. The connector insert is V0 rated for inflammability and operates within a wide temperature range from -40°C to 120°C. It complies with various technical standards, making it a reliable choice for industrial multipole connectors.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Plug-In Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
2.5 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
0.5 mm²
Connection Data Number Of Poles
6
Connection Data With Wire Protection
No
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠5 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
9 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Mating Cycles
500
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
MALE INSERT BAS STP 6 2,5 50 AG
General Modular Version
No
General Pollution Degree
3
General Type
Male Insert
Model With Housing
No
Technical Data Din En 61984 Nominal Current
16 A
Technical Data Din En 61984 Nominal Voltage
500 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
14 WG mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
26 WG mm²
Technical Data Ulcsa Rated Current According Canadian Standards
13 A
Technical Data Ulcsa Rated Current According Underwriters Labora
13 A
