Wieland BAS STS 48 2.5 50 Industrial Connector Insert
Wieland BAS STS 48 2.5 50 Industrial Connector Insert
SKU:IND-df3aec
Reliable Wieland 48-pole industrial connector insert with 16A current, 500V voltage, and tin-plated contacts for secure connections.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Wieland BAS STS 48 2.5 50 Industrial Connector Insert
$69.99
Quantity: 1
Claim Your Seller Account
Wieland BAS STS 48 2.5 50 Industrial Connector Insert
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

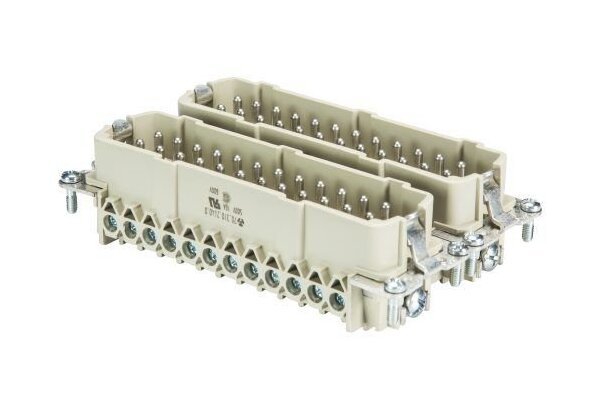

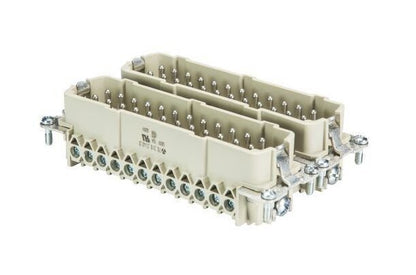

The Wieland BAS STS 48 2.5 50 Industrial Connector Insert is a robust male insert designed for industrial applications. Featuring 48 poles with a rated current of 16A and a rated voltage of 500V, this connector insert ensures reliable power connections. With tin-plated contacts, it offers superior conductivity and durability. The screw connection type with wire protection makes installation easy and secure, while meeting stringent technical standards for insulation, temperature range, and conductor cross-sections.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Screw Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
2.5 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
0.5 mm²
Connection Data Number Of Poles
48
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
48
Connection Data With Wire Protection
Yes
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠1.5 mΩ
Contacts Surface
Tin-Plated
Contacts Wire Strip Length
7 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Mating Cycles
200
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
MALE INSERT BAS STS 48 2,5 50
General Modular Version
No
General Pollution Degree
3
General Type
Male Insert
Model With Housing
No
Screws Head Design Clamping Screws
H1/0.5-0.7 N·m
Screws Head Design Ground Conductor Screws
H2/1.2-1.6 N·m
Screws Head Design Mounting Screws
H1/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
500 V
Technical Data Din En 61984 Nominal Current
16 A
Technical Data Din En 61984 Nominal Voltage
500 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
22-14 AWG
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
2.5 mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
0.5 mm²
Technical Data Ulcsa Rated Current According Canadian Standards
16 A
