Wieland Basic Line Power Supply P1 24-2.5
Wieland Basic Line Power Supply P1 24-2.5
SKU:POW-968c0c
Get reliable and efficient power with the Wieland Basic Line Power Supply P1 24-2.5. Nominal voltage 24V DC, continuous current 2.5A, CE and UL listed.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Wieland Basic Line Power Supply P1 24-2.5
$89.99
Quantity: 1
Claim Your Seller Account
Wieland Basic Line Power Supply P1 24-2.5
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Basic Line Power Supply P1 24-2.5 is a reliable switch-mode power supply designed for industrial applications. With a nominal voltage of 24V DC and continuous current of 2.5A, it offers sustained short-circuit protection for added safety. This single-phase power supply has an input voltage range of 85-264V AC / 90-375V DC, making it versatile for various institutional and government settings. The compact dimensions of 40.5mm x 88.5mm x 115mm and durable polycarbonate housing ensure easy installation and long-lasting performance. CE and UL listed, this power supply meets stringent quality and safety standards.
Product Specifications
Classification Eclass 81 Classification
27049002
Classification Etim 50 Classification
EC002540
Classification Etim 60 Classification
EC002540
Classification Etim 70 Classification
EC002540

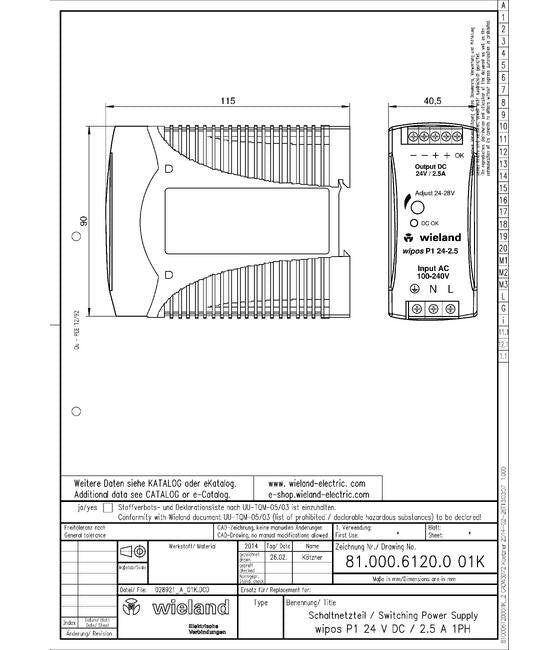

Dimensions Depth
115 mm
Dimensions Height
90 mm
Dimensions Horizontal Mounting Distance
25 mm
Dimensions Vertical Mounting Distance
25 mm
Dimensions Weight
360 g
Dimensions Width
40.5 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Continuous Current
2.5 A
General Degree Of Protection Ip
IP20
General Direct Current Dc Output Voltage
24 V
General Housing Material
Polycarbonate
General Maximum Operating Temperature
71 ºC
General Maximum Relative Humidity Rh
95 %
General Maximum Transport Storage Temperature
-40 ºC
General Minimum Operating Temperature
-40 ºC
General Minimum Relative Humidity Rh
20 %
General Minimum Transport Storage Temperature
85 ºC
General Model
Wipos P1 24-2.5
General Modular Version
No
General Nominal Alternating Current Ac Input Voltage
85 to 264 V
General Nominal Direct Current Dc Input Voltage
90 to 375 V
General Power
70 W
Input Maximum Alternating Current Ac Input Voltage
264 V
Input Maximum Direct Current Dc Input Voltage
375 V
Input Minimum Alternating Current Ac Input Voltage
85 V
Input Minimum Direct Current Dc Input Voltage
90 V
Input Power Consumption
< 81 V·A
Output Maximum Output Voltage
28 V
Output Minimum Output Voltage
24 V
Output Output Voltage
24 V
Output Output Voltage Stabilized
Yes
Output Power Output
70 W
Output Type Of Output Voltage
Direct Current (DC)
Technical Data Direct Current Dc Output Isolating Voltage
4242 V
Technical Data Ok Port Switch Voltage At U Out
> 19.2 V
