Wieland BK M8/35 DIN Rail Ring Lug Terminal Block
Wieland BK M8/35 DIN Rail Ring Lug Terminal Block
Securely mount and connect with the Wieland BK M8/35 Stud Terminal Block on TS 35 DIN rails. Nominal cross-section 50 mm², rated current 150 A. RoHS and REACH-SVHC compliant.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Wieland BK M8/35 DIN Rail Ring Lug Terminal Block
$25.99
Quantity: 1
Claim Your Seller Account
Wieland BK M8/35 DIN Rail Ring Lug Terminal Block
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

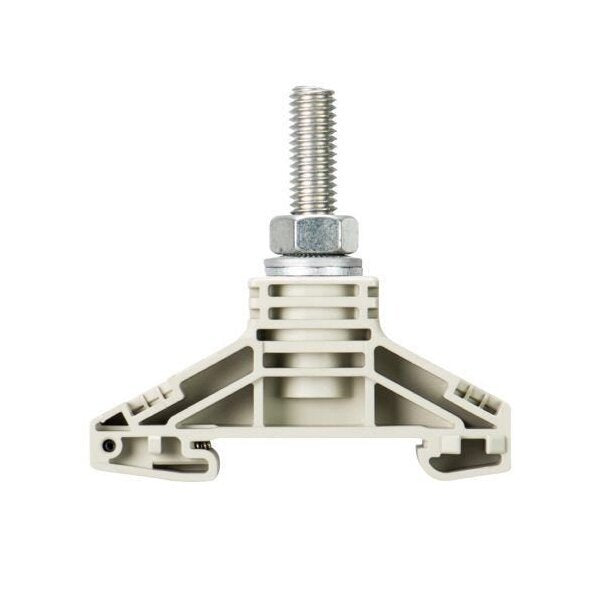

The Wieland BK M8/35 Stud Terminal Block is a high-quality ring lug terminal block designed for secure mounting on TS 35 DIN rails. With a nominal cross-section of 50 mm² and a rated current of 150 A, this terminal block offers reliable electrical connections. Its gray insulating housing made of PA666 material ensures durability and safety. Compliant with RoHS and REACH-SVHC standards, this terminal block is suitable for various applications requiring robust and compliant electrical connections.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Bolt Connection
Connection Data Connection Type 2
Bolt Connection
Connection Data Maximum Fine Stranded Cross Section
50 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Maximum Stranded Cross Section
50 mm²
Connection Data Torque Conductor Mounting
6 N·m
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
No
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
BK M8/35
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
50 mm²
General Number Of Clamp Positions Per Level
1
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
24.6 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
No
Technical Data Length
67 mm
Technical Data Maximum Rated Voltage
1000 V
Technical Data Pollution Degree
3
Technical Data Rated Current
150 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Current Canadian Standards Association Csa
200 A
Technical Data Ulcsa Factory Wiring Current
150 A
Technical Data Ulcsa Field Wiring Current
150 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
1000 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
1000 V
