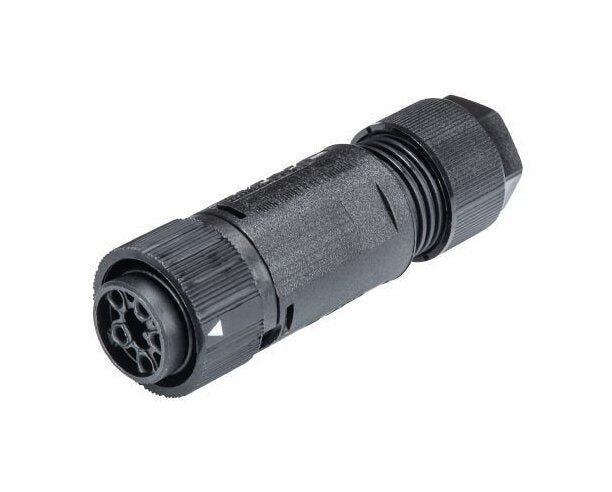

Wieland Black 5-Pole Female Pluggable Electrical Connector - 16A
Wieland Black 5-Pole Female Pluggable Electrical Connector - 16A
SKU:CIR-4013df
Reliable Wieland 5-Pole Female Connector for 250/400V applications, 16A rating, designed for outdoor use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland Black 5-Pole Female Pluggable Electrical Connector - 16A
$24.99
Quantity: 1
Claim Your Seller Account
Wieland Black 5-Pole Female Pluggable Electrical Connector - 16A
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Black 5-Pole Female Pluggable Electrical Connector is a high-quality solution designed for applications requiring 250/400V with PE. With a rated current of 16A, this connector accommodates cable diameters ranging from 7.1mm to 13mm. Featuring a self-locking mechanism, black housing, and screw connection type, this connector ensures secure and reliable electrical connections. Compliant with IP69 and UL Listed standards, it offers superior performance and durability, making it ideal for outdoor use in harsh environments.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Maximum Stranded Connection Cross Section
2.5 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.25 mm²
Connection Data Minimum Solid Connection Cross Section
0.25 mm²
Connection Data Minimum Stranded Connection Cross Section
0.25 mm²
Connection Data Sheath Strip Length
25 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm

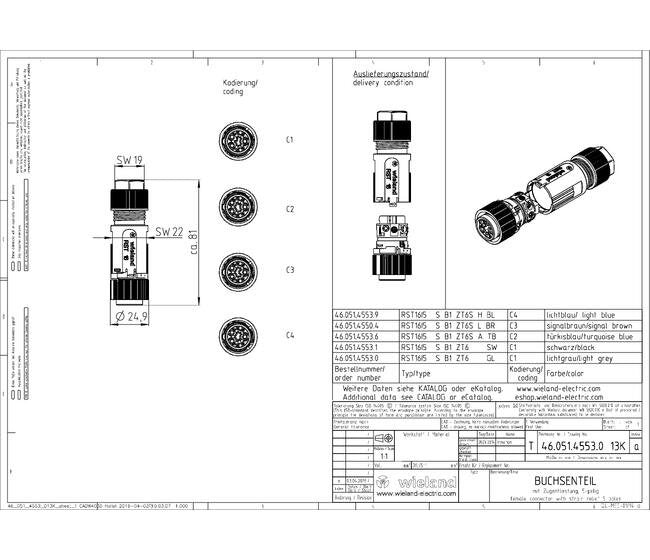

Dimensions Height
24.9 mm
Dimensions Length
81 mm
Dimensions Width
24.9 mm
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Connection Type
Screw Connection
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
1 | 2 | 3 | N | PE
General Number Of Poles
5
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.176 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Maximum Cable Diameter
13 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
7.1 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Wire Size According To Canadian Ul Listed United
22 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 2.5 mm²
