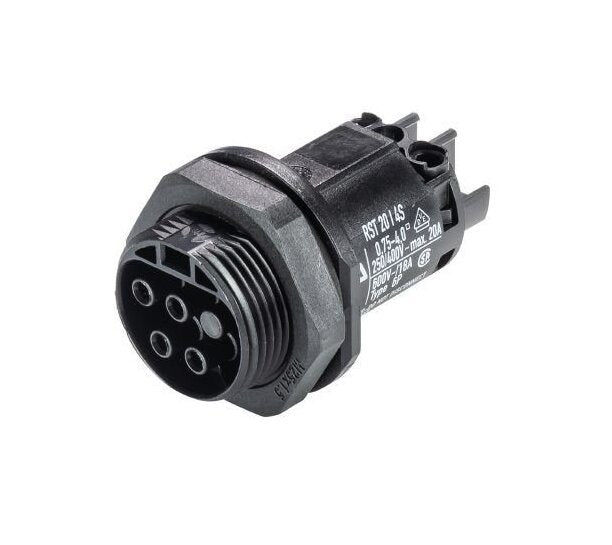

Wieland Black RST20I4 Female Device Connector, Straight Angle Plug

Name: Wieland Black RST20I4 Female Device Connector, Straight Angle Plug
Brand: Wieland Electric Inc.
SKU: CIR-3a870e
Price: 29.99 USD
Availability: OutOfStock

SKU:CIR-3a870e

Secure and durable Wieland Black RST20I4 Female Device Connector for outdoor use with IP69 protection.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wieland Black RST20I4 Female Device Connector features a screw connection and 4 poles, ensuring secure electrical connections. With a rated voltage ranging from 250V to 600V and a rated current of 20A, this connector is suitable for demanding outdoor applications. Meeting IP69 and Type 4X/6P protection standards, it guarantees reliable performance in harsh environments. Compliant with IEC and cULus wire size standards, this connector combines durability with efficient electrical conductivity.

Product Specifications

General Angle Of Plug

Straight

General Brands

Wieland

General Color Of Codingcontact Carrier

Black

General Connection Type

Screw Connection

General Model

RST20I4 Female

General Number Of Poles

Note Note

Technical details are subject to change

Specifications Type

Female

Technical Data Alternating Current Ac Voltage Disconnect Under L

350 V

Technical Data Current Disconnect Under Load Usa And Canada

20 A

Technical Data Degree Of Protection According To Canadian Ul Lis

Type 4X / 6P

Technical Data Degree Of Protection According To International E

IP69

Technical Data Maximum Rated Voltage

600 V

Technical Data Minimum Rated Voltage

250 V | 400 V

Technical Data Rated Current

20 A

Technical Data Thread Size

M25

Technical Data Wire Size According To Canadian Ul Listed United

18 to 14 AWG

Technical Data Wire Size According To International Electrotechn

0.75 to 4 mmÂ²
