Wieland Bottom Bas GP 10A Industrial Multipole Connector Housing
Wieland Bottom Bas GP 10A Industrial Multipole Connector Housing
SKU:IND-f65f4c
Wieland Bottom Bas GP 10A: Durable aluminum housing with 10 poles, single locking lever, IP54 rated, UV resistant. Ideal for industrial use.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Wieland Bottom Bas GP 10A Industrial Multipole Connector Housing
$69.99
Quantity: 1
Claim Your Seller Account
Wieland Bottom Bas GP 10A Industrial Multipole Connector Housing
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Bottom Bas GP 10A Multi-Pole Heavy-Duty Industrial Connector Housing is a top-of-the-line solution for industrial connectivity. Constructed from durable aluminum with a powder coating, this housing offers a secure enclosure for 10 poles with a single locking lever mechanism. With a low profile design, hinged lid, and IP54 protection rating, it ensures reliable performance in diverse operating conditions. This housing is UV resistant, RoHS compliant, and designed to withstand temperatures ranging from -40°C to 120°C, making it a versatile and durable choice for industrial applications.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP54
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
BOTTOM BAS GUT GP 10 A
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
None
Model Construction
10
Model Emc Version
No

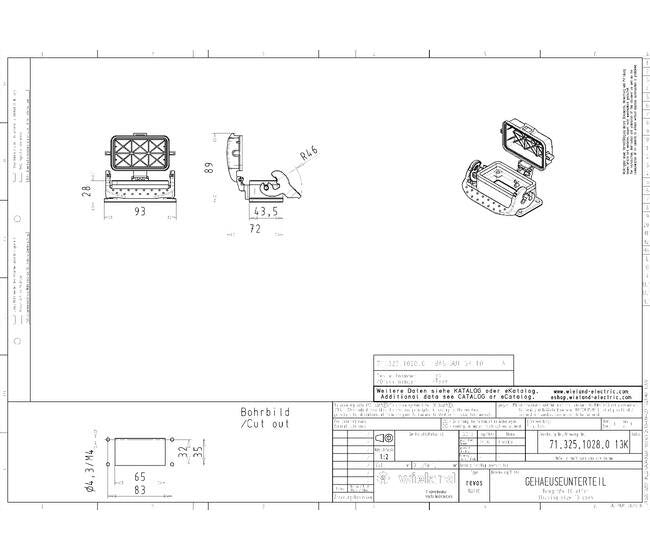

Model Height
28 mm
Model Hinged Lid
Yes
Model Length
93 mm
Model Locking Mechanism
Single Locking Lever
Model Type
Equipment Mounted (Feed-Through)
Model Type Of Cable
None
Model Width
43.5 mm
Model With Cable Screw Gland
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(a)
Specifications Number Of Poles
10
Specifications Profile
Low
