Wieland BOTTOM BAS GUT GC 16 M25 A1 Heavy-Duty Industrial Connector Housing
Wieland BOTTOM BAS GUT GC 16 M25 A1 Heavy-Duty Industrial Connector Housing
SKU:IND-8fd626
Durable Wieland 16-Pole Industrial Connector Housing with Double Locking Lever & Aluminum Construction
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Wieland BOTTOM BAS GUT GC 16 M25 A1 Heavy-Duty Industrial Connector Housing
$89.99
Quantity: 1
Claim Your Seller Account
Wieland BOTTOM BAS GUT GC 16 M25 A1 Heavy-Duty Industrial Connector Housing
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

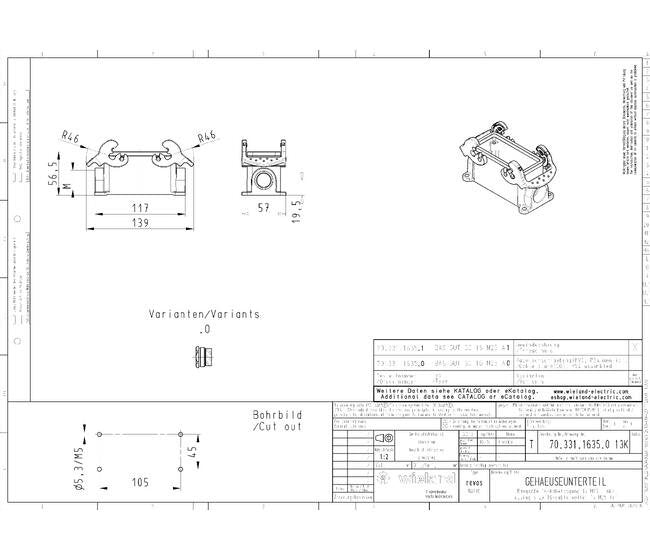

The Wieland BOTTOM BAS GUT GC 16 M25 A1 Multi-Pole Heavy-Duty Industrial Connector Housing is a high-performance solution for industrial applications. Constructed from durable aluminum with a gray powder coating, this 16-pole connector features a double locking lever for secure cable connections. With a temperature range from -40 °C to 120 °C and UV resistance, it ensures reliable operation in harsh environments. Measuring 117mm x 57mm x 57mm in a low profile design, this connector housing is ideal for surface mounting.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
Other
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
BOTTOM BAS GUT GC 16 M25 A1
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Sideways
Model Construction
16
Model Emc Version
No
Model Height
57 mm
Model Hinged Lid
No
Model Length
117 mm
Model Locking Mechanism
Double Locking Levers
Model Thread Size M
25
Model Type
Surface Mounting (Base)
Model Type Of Cable
Thread
Model Width
57 mm
Model With Cable Screw Gland
No
Product Compliance Reach Svhc Conformity Status
Compliant
Specifications Number Of Poles
16
Specifications Profile
Low
