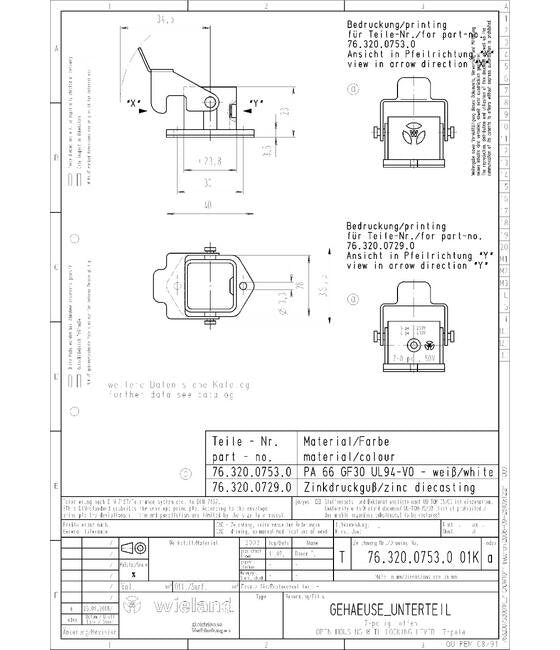

Wieland BOTTOM MIN GUT GA 7 25 Z Multi-Pole Industrial Connector Housing
Wieland BOTTOM MIN GUT GA 7 25 Z Multi-Pole Industrial Connector Housing
SKU:IND-646087
Durable Wieland industrial connector housing with cast zinc construction, IP54 rating, and UV resistance for reliable performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland BOTTOM MIN GUT GA 7 25 Z Multi-Pole Industrial Connector Housing
$49.99
Quantity: 1
Claim Your Seller Account
Wieland BOTTOM MIN GUT GA 7 25 Z Multi-Pole Industrial Connector Housing
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland BOTTOM MIN GUT GA 7 25 Z Multi-Pole Heavy-Duty Industrial Connector Housing is a top-quality solution for industrial multipole connections. Constructed with durable cast zinc housing, this gray connector features a powder coating for added protection. With an IP54 rating and UV resistance, it ensures reliable performance in challenging environments. The single locking lever mechanism and equipment mounted design enhance security and ease of use. Operating between -40ºC to 120ºC, this connector meets high standards of safety and functionality, making it ideal for industrial applications with its low-profile construction.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP54
General Housing Material
Cast Zinc
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
BOTTOM MIN GUT GA 7 25 Z
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
None
Model Construction
3
Model Emc Version
40 mm
Model Hinged Lid
No
Model Length
36.5 mm
Model Locking Mechanism
Single Locking Lever
Model Thread Size Pg
No
Model Type
Equipment Mounted (Feed-Through)
Model Type Of Cable
None
Model Width
23 mm
Model With Cable Screw Gland
No
Specifications Profile
Low
