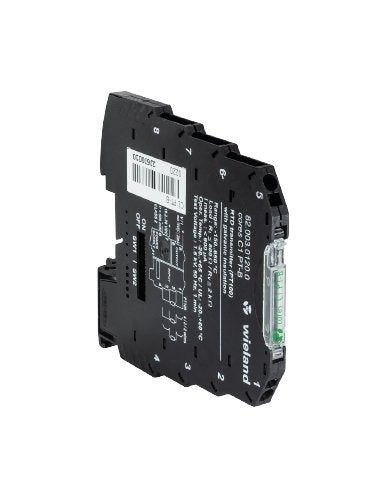

Wieland C1 PT-B Analog Isolation Amplifier Core
Wieland C1 PT-B Analog Isolation Amplifier Core
SKU:ANA-fada86
Achieve superior signal isolation and conversion with the Wieland C1 PT-B Analog Isolation Amplifier Core - ideal for precise measurements and compliance-driven applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Wieland C1 PT-B Analog Isolation Amplifier Core
$289.99
Quantity: 1
Claim Your Seller Account
Wieland C1 PT-B Analog Isolation Amplifier Core
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience top-tier signal isolation and precise conversion with the Wieland C1 PT-B Analog Isolation Amplifier Core. This device offers adjustable input and output ranges, 3-way galvanic isolation, high accuracy (<0.1%), and compliance with RoHS and REACH-SVHC standards. With a compact design and easy spring clamp connections, it ensures reliable performance in temperature extremes (-20°C to 65°C). Ideal for industries requiring strict adherence to quality and safety standards.
Product Specifications
Classification Eclass 81 Classification
27210120
Classification Etim 40 Classification
EC002653
Classification Etim 50 Classification
EC002653
Classification Etim 60 Classification
EC002653
Classification Etim 70 Classification
EC002653
Classification Etim 80 Classification
EC002653
Classification Etim 90 Classification
EC002653
Dimensions Depth
102.5 mm
Dimensions Height
93.1 mm
Dimensions Width
6.2 mm
Product Compliance Certificationapproval
Underwriters Laboratories (UL) (Canada) (United States) (cULus) Listed
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Accuracy
< 0.1 %
Technical Data Alternatingdirect Current Acdc Supply Voltage
24 V
Technical Data Brands
Wieland
Technical Data Connection Type
Spring Clamp Connection
Technical Data Direct Current Dc Output Current Range Adjustable
0/4 to 20 mA | 20 to 4/0 mA
Technical Data Direct Current Dc Output Voltage Range Adjustable
0/1 to 5 V | 0 to 10 V
Technical Data Electrical Isolation Voltage
1.5 kV
Technical Data Galvanic Isolation
Yes
Technical Data Galvanic Isolation Type
3 Way
Technical Data Input Range Adjustable
PT100 with 2, 3, or 4 Wire Connection, -150 to 650ºC
Technical Data Isolation Voltage
1500 V
Technical Data Maximum Direct Current Dc Input Voltage
30 V
Technical Data Maximum Operating Temperature
65 ºC
Technical Data Minimum Direct Current Dc Input Voltage
19.2 V
Technical Data Minimum Operating Temperature
-20 ºC
Technical Data Model
C1 PT-B
Technical Data Power Consumption
< 0.5 W
Technical Data Resolution
14 bits
Technical Data Wire Range Solidfine Stranded
0.2 to 2.5 mm²
