Wieland C1 TC-B Analog Isolation Amplifier
Wieland C1 TC-B Analog Isolation Amplifier
SKU:ANA-3b143e
Wieland C1 TC-B Analog Isolation Amplifier - Precision, reliability, and compliance in one.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Wieland C1 TC-B Analog Isolation Amplifier
$299.99
Quantity: 1
Claim Your Seller Account
Wieland C1 TC-B Analog Isolation Amplifier
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

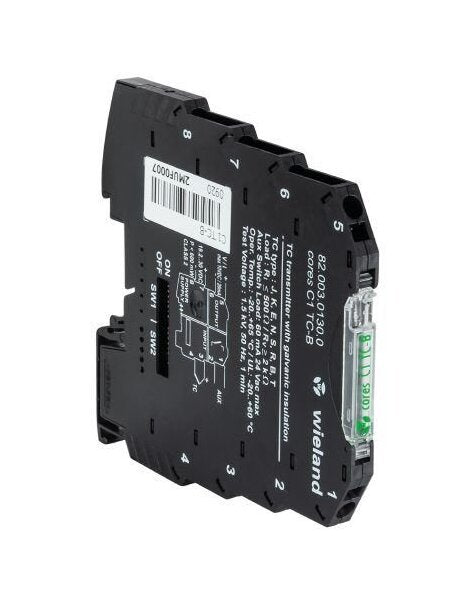

Experience unparalleled precision with the Wieland C1 TC-B Analog Isolation Amplifier. This 3-way electrical isolation amplifier core ensures accurate signal conversion with galvanic isolation, offering a range of output options suitable for various thermocouple types. With outstanding < 0.1% accuracy and 14-bit resolution, this amplifier guarantees reliable performance in temperatures ranging from -20°C to 65°C. Its compact design and spring clamp connection make installation a breeze. UL-certified and compliant with RoHS and REACH regulations, this amplifier is a trusted choice for industrial applications.
Product Specifications
Classification Eclass 81 Classification
27210120
Classification Etim 40 Classification
EC002653
Classification Etim 50 Classification
EC002653
Classification Etim 60 Classification
EC002653
Classification Etim 70 Classification
EC002653
Classification Etim 80 Classification
EC002653
Classification Etim 90 Classification
EC002653

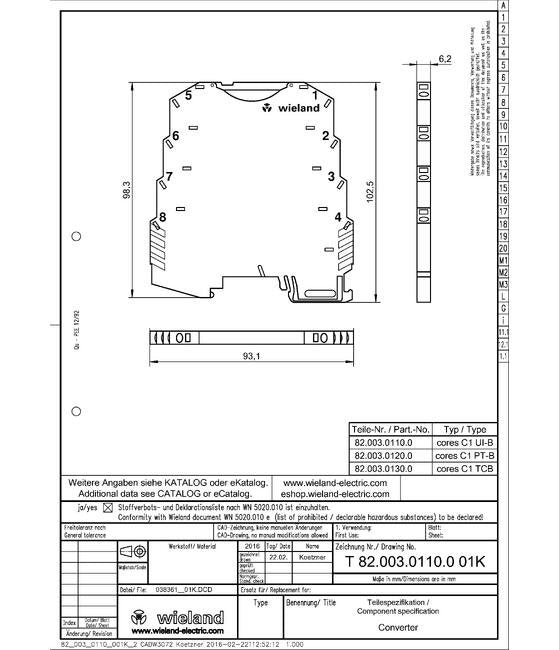

Dimensions Depth
102.5 mm
Dimensions Height
93.1 mm
Dimensions Width
6.2 mm
Product Compliance Certificationapproval
Underwriters Laboratories (UL) (Canada) (United States) (cULus) Listed
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Accuracy
< 0.1 %
Technical Data Alternatingdirect Current Acdc Supply Voltage
24 V
Technical Data Brands
Wieland
Technical Data Connection Type
Spring Clamp Connection
Technical Data Direct Current Dc Output Current Range Adjustable
0/4 to 20 mA | 20 to 4/0 mA
Technical Data Direct Current Dc Output Voltage Range Adjustable
0/1 to 5 V | 0 to 10 V
Technical Data Electrical Isolation Voltage
1.5 kV
Technical Data Galvanic Isolation
Yes
Technical Data Galvanic Isolation Type
3 Way
Technical Data Isolation Voltage
1500 V
Technical Data Maximum Direct Current Dc Input Voltage
30 V
Technical Data Maximum Operating Temperature
65 ºC
Technical Data Minimum Direct Current Dc Input Voltage
19.2 V
Technical Data Minimum Operating Temperature
-20 ºC
Technical Data Model
C1 TC-B
Technical Data Power Consumption
< 0.5 W
Technical Data Resolution
14 bits
Technical Data Type Of Thermocouple
B | E | J | K | N | R | S | T
Technical Data Wire Range Solidfine Stranded
0.2 to 2.5 mm²
