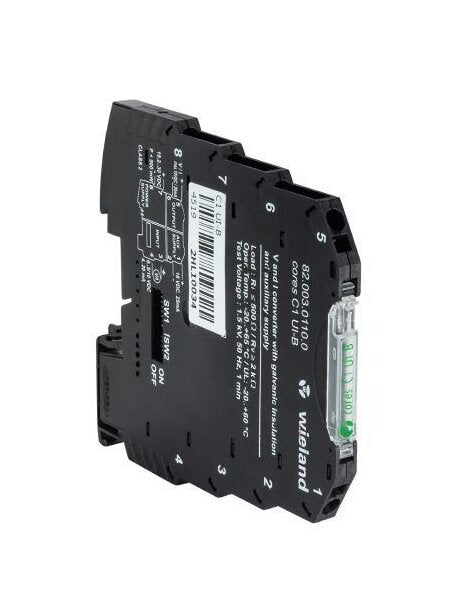

Wieland C1 UI-B Analog Isolation Amplifier Core
Wieland C1 UI-B Analog Isolation Amplifier Core
SKU:ANA-7335a1
Enhance electrical systems with precision using the Wieland C1 UI-B Isolation Amplifier Core with 3-way galvanic isolation & < 0.1% accuracy.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Wieland C1 UI-B Analog Isolation Amplifier Core
$189.99
Quantity: 1
Claim Your Seller Account
Wieland C1 UI-B Analog Isolation Amplifier Core
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your electrical systems with the Wieland C1 UI-B Analog Isolation Amplifier Core. This 3-way galvanic isolation amplifier offers adjustable input and output ranges, ensuring precise signal conversion with < 0.1% accuracy. With a compact design and compliance with RoHS, REACH-SVHC, and UL certifications, this amplifier core is ideal for industrial applications requiring high-quality electrical isolation.
Product Specifications
Classification Eclass 81 Classification
27210120
Classification Etim 40 Classification
EC002653
Classification Etim 50 Classification
EC002653
Classification Etim 60 Classification
EC002653
Classification Etim 70 Classification
EC002653
Classification Etim 80 Classification
EC002653
Classification Etim 90 Classification
EC002653

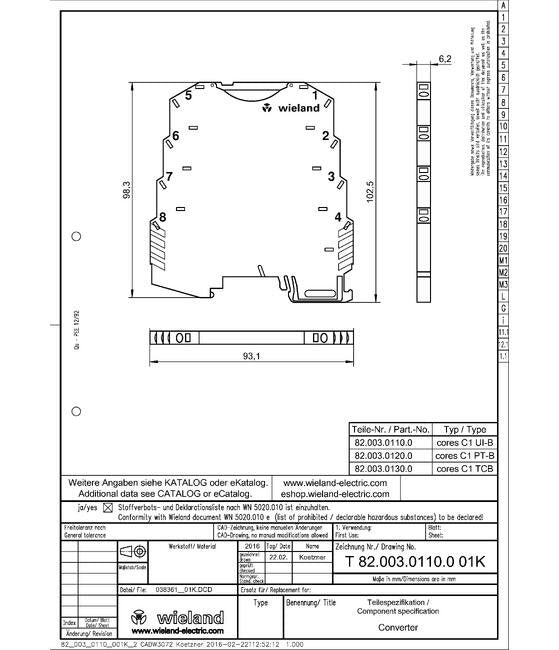

Dimensions Depth
102.5 mm
Dimensions Height
93.1 mm
Dimensions Width
6.2 mm
Product Compliance Certificationapproval
Underwriters Laboratories (UL) (Canada) (United States) (cULus) Listed
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Accuracy
< 0.1 %
Technical Data Alternatingdirect Current Acdc Supply Voltage
24 V
Technical Data Brands
Wieland
Technical Data Connection Type
Spring Clamp Connection
Technical Data Direct Current Dc Active Or Passive Output Curren
20 to 4/0 mA
Technical Data Direct Current Dc Input Current Range Adjustable
0/4 to 20 mA
Technical Data Direct Current Dc Input Voltage Range Adjustable
0/1 to 5 V
Technical Data Direct Current Dc Oder Input Voltage Range Adjust
0/2 to 10 V
Technical Data Direct Current Dc Output Current Range Adjustable
0/4 to 20 mA
Technical Data Direct Current Dc Output Voltage Range Adjustable
0/1 to 5 V | 0 to 10 V
Technical Data Electrical Isolation Voltage
1.5 kV
Technical Data Galvanic Isolation
Yes
Technical Data Galvanic Isolation Type
3 Way
Technical Data Isolation Voltage
1500 V
Technical Data Maximum Direct Current Dc Input Voltage
30 V
Technical Data Maximum Operating Temperature
65 ºC
Technical Data Minimum Direct Current Dc Input Voltage
19.2 V
Technical Data Minimum Operating Temperature
-20 ºC
Technical Data Model
C1 UI-B
Technical Data Power Consumption
< 0.5 W
Technical Data Resolution
14 bits
Technical Data Wire Range Solidfine Stranded
0.2 to 2.5 mm²
