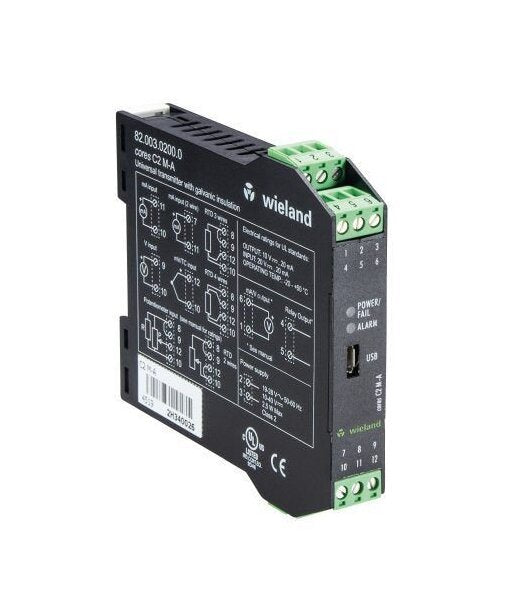

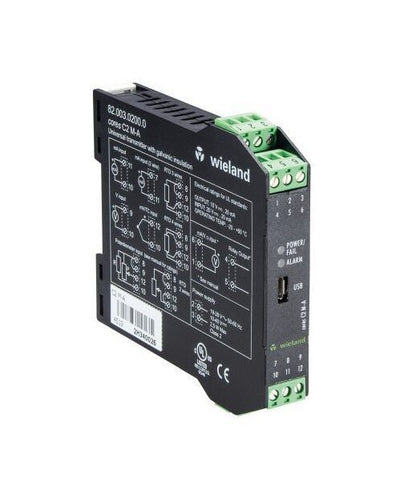

Wieland C2 M-A Analog Isolation Amplifier Converter
Wieland C2 M-A Analog Isolation Amplifier Converter
SKU:ANA-3942de
Get precise signal conversion with the Wieland Analog Isolation Converter. High accuracy, rapid reaction times, and 3-way galvanic isolation ensure top performance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Wieland C2 M-A Analog Isolation Amplifier Converter
$349.99
Quantity: 1
Claim Your Seller Account
Wieland C2 M-A Analog Isolation Amplifier Converter
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior electrical isolation with the Wieland C2 M-A Analog Isolation Amplifier Converter. Featuring adjustable input and output ranges, 3-way galvanic isolation, high accuracy, and rapid reaction times, this converter ensures precise signal conversion. With compliance to RoHS and REACH-SVHC standards, along with UL Listed certification, it meets stringent quality and safety requirements for institutional and government procurement.
Product Specifications
Classification Eclass 81 Classification
27210120
Classification Etim 40 Classification
EC002653
Classification Etim 50 Classification
EC002653
Classification Etim 60 Classification
EC002653
Classification Etim 70 Classification
EC002653
Classification Etim 80 Classification
EC002653
Classification Etim 90 Classification
EC002653

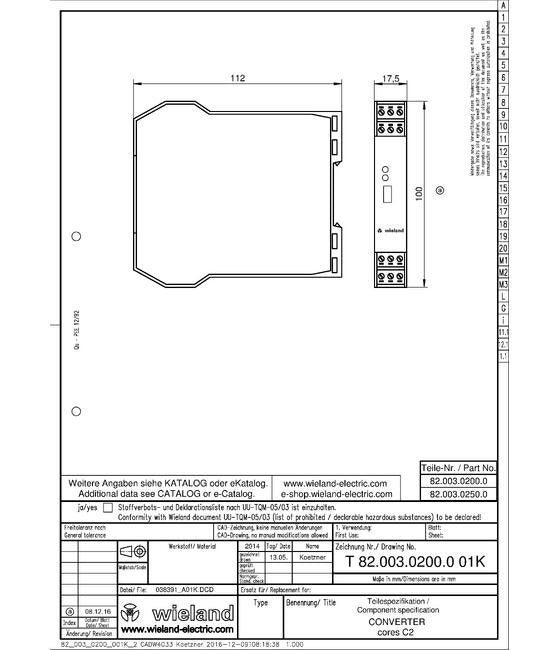

Dimensions Depth
112 mm
Dimensions Height
100 mm
Dimensions Width
17.5 mm
Product Compliance Certificationapproval
Underwriters Laboratories (UL) (Canada) (United States) (cULus) Listed
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Accuracy
< 0.1 %
Technical Data Alternatingdirect Current Acdc Supply Voltage
24 V
Technical Data Brands
Wieland
Technical Data Connection Type
Spring Clamp Connection
Technical Data Direct Current Dc Output Current Range Adjustable
0/4 to 20 mA | 4 to 20 mA
Technical Data Direct Current Dc Output Voltage Range Adjustable
0/1 to 5 V | 0 to 10 V | 1 to 5 V | 2 to 10 V
Technical Data Electrical Isolation Voltage
1.5 kV
Technical Data Galvanic Isolation
Yes
Technical Data Galvanic Isolation Type
3 Way
Technical Data Input Range Adjustable
3 or 4 wire connection 500 Ohm to 10 kΩ Potentiometer | 500 Ohm to 25 kΩ Rheostat | 75 mV to 20 V in 9 ranges (bipolar), 0 to 20 mA (bipolar) J,K,R,S,T,B,E,N Thermo coupler Pt100, Pt500, Pt1000, Ni100
Technical Data Isolation Voltage
1500 V
Technical Data Maximum Alternating Current Ac Input Voltage
28 V
Technical Data Maximum Direct Current Dc Input Voltage
40 V
Technical Data Maximum Operating Temperature
60 ºC
Technical Data Minimum Alternating Current Ac Input Voltage
19 V
Technical Data Minimum Direct Current Dc Input Voltage
10 V
Technical Data Minimum Operating Temperature
-10 ºC
Technical Data Model
C2 M-A
Technical Data Power Consumption
< 2.5 W
Technical Data Reaction Time At 12 Bit Accuracy
< 35 ms
Technical Data Reaction Time At 16 Bit Accuracy
< 140 ms
Technical Data Resolution
14 bits | 16 bits
Technical Data Wire Range Solidfine Stranded
0.14 to 2.5 mm²
