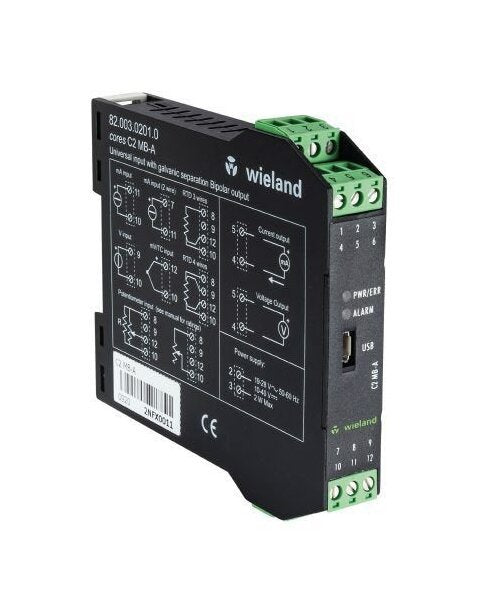

Wieland C2 MB-A Analog Isolation Amplifier Core
Wieland C2 MB-A Analog Isolation Amplifier Core
SKU:ANA-a798d6
Enhanced Wieland C2 MB-A Analog Isolation Amplifier Core for precise control and measurement applications.
Regular price
$1,899.00
Regular price
Sale price
$1,899.00
Unit price
per
Initiate Order
Wieland C2 MB-A Analog Isolation Amplifier Core
$1,899.00
Quantity: 1
Claim Your Seller Account
Wieland C2 MB-A Analog Isolation Amplifier Core
$1,899.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland C2 MB-A Analog Isolation Amplifier Core is a cutting-edge solution designed for precise measurement and control applications. With a 3-way galvanic isolation offering 1500V isolation voltage, this converter ensures signal integrity and accuracy. Featuring a versatile input range compatible with various thermocouples and potentiometers, it provides < 0.1% accuracy and 16-bit resolution. The compact design, screw clamp pluggable connection, and wide operating temperature range make it ideal for industrial settings. Certified compliant with RoHS, REACH-SVHC, and UL standards.
Product Specifications
Classification Eclass 81 Classification
27210120
Classification Etim 40 Classification
EC002653
Classification Etim 50 Classification
EC002653
Classification Etim 60 Classification
EC002653
Classification Etim 70 Classification
EC002653
Classification Etim 80 Classification
EC002653
Classification Etim 90 Classification
EC002653

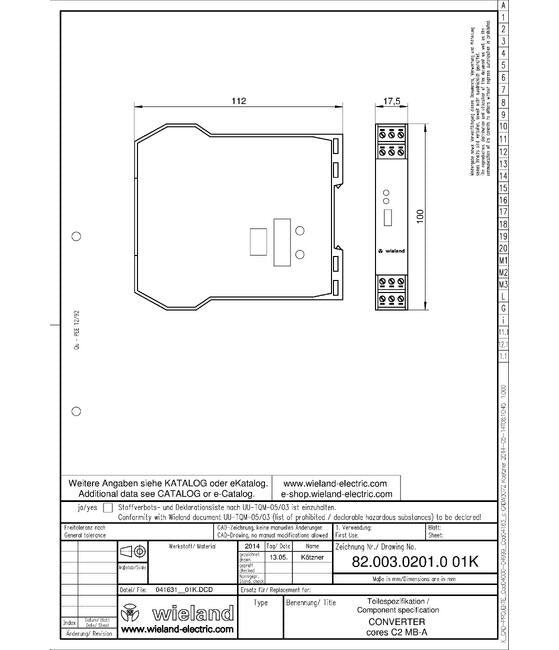

Dimensions Depth
112 mm
Dimensions Height
100 mm
Dimensions Width
17.5 mm
Product Compliance Certificationapproval
Underwriters Laboratories (UL) (Canada) (United States) (cULus) Listed
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Accuracy
< 0.1 %
Technical Data Alternatingdirect Current Acdc Supply Voltage
24 V
Technical Data Brands
Wieland
Technical Data Connection Type
Screw Clamp Pluggable
Technical Data Direct Current Dc Input Current Range Adjustable
0 to 20 mA (Bipolar)
Technical Data Direct Current Dc Input Voltage Range Adjustable
75 mV to 20 V in 9 Ranges (Bipolar)
Technical Data Direct Current Dc Output Current Range Adjustable
-20 to +20 mA
Technical Data Direct Current Dc Output Voltage Range Adjustable
-10 to +10 V
Technical Data Electrical Isolation Voltage
1.5 kV
Technical Data Galvanic Isolation
Yes
Technical Data Galvanic Isolation Type
3 Way Isolation
Technical Data Input Range Adjustable
3 or 4 Wire 500 Ohm to 10 kΩ Potentiometer | 500 Ohm to 25 kΩ Rheostat | J, K, R, S, T, B, E, N Thermo Coupler Pt100, Pt500, Pt1000, Ni100
Technical Data Isolation Voltage
1500 V
Technical Data Maximum Alternating Current Ac Input Voltage
28 V
Technical Data Maximum Direct Current Dc Input Voltage
40 V
Technical Data Maximum Operating Temperature
65 ºC
Technical Data Minimum Alternating Current Ac Input Voltage
19 V
Technical Data Minimum Direct Current Dc Input Voltage
10 V
Technical Data Minimum Operating Temperature
-20 ºC
Technical Data Model
C2 MB-A
Technical Data Power Consumption
< 2 W
Technical Data Reaction Time At 12 Bit Accuracy
< 35 ms
Technical Data Reaction Time At 16 Bit Accuracy
< 140 ms
Technical Data Resolution
14 bits | 16 bits
Technical Data Type Of Thermocouple
B | E | J | K | N | R | S | T
Technical Data Wire Range Solidfine Stranded
0.14 to 2.5 mm²
