Wieland Circular Electrical Connector RST25I5S
Wieland Circular Electrical Connector RST25I5S
SKU:CIR-529090
High-quality 5-pole circular connector for outdoor use, rated at 25A with screw connection and IP66/IP68/IP69 protection. RoHS & REACH compliant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Wieland Circular Electrical Connector RST25I5S
$39.99
Quantity: 1
Claim Your Seller Account
Wieland Circular Electrical Connector RST25I5S
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

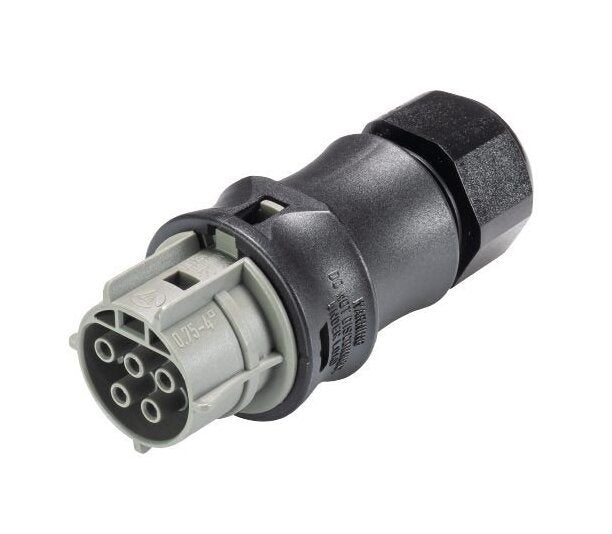

The Wieland Circular Electrical Connector RST25I5S B1 ZR2S BG03 is a high-quality 5-pole connector designed for outdoor use with a rated current of 25A. It features a screw connection for secure terminations, color-coded concrete gray for easy identification, and a durable polyamide housing in black. With a maximum rated voltage of 600V and IP66/IP68/IP69 protection, this connector ensures reliable performance in demanding conditions. Compliant with RoHS and REACH regulations, it meets industry standards for safety and environmental responsibility.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm²
Connection Data Maximum Solid Connection Cross Section
4 mm² | 14 AWG
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm² | 18 AWG
Connection Data Sheath Strip Length
26.5 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm
Dimensions Height
34.6 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Concrete Gray
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
1 | 2 | L | N | PE
General Model
RST25I5S B1 ZR2S BG03
General Pollution Degree
3
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.29 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Connection Type
Screw Connection
Model Degree Of Protection Ip
IP66 | IP68 (3m;2h) | IP69
Model Electrical Connector Type
Female
Note Note
Fine-stranded and stranded wires have to be used without ferrules
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
