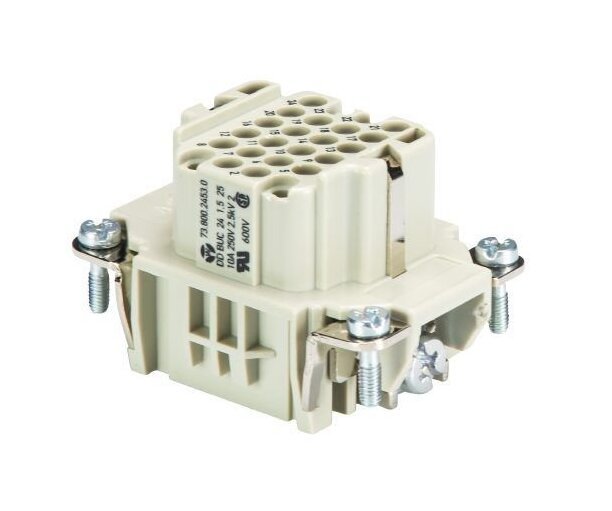

Wieland DD BUC 24 1,5 25 Industrial Connector Insert
Wieland DD BUC 24 1,5 25 Industrial Connector Insert
SKU:IND-b5a316
Reliable 24-pole + ground Industrial Connector Insert with crimp connection, V0 inflammability class, and RoHS compliance.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Wieland DD BUC 24 1,5 25 Industrial Connector Insert
$45.99
Quantity: 1
Claim Your Seller Account
Wieland DD BUC 24 1,5 25 Industrial Connector Insert
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland DD BUC 24 1,5 25 Industrial Connector Insert is a reliable solution for industrial multipole connectors. This female insert boasts 24 poles + ground, with a rated current of 10A at 250V. Featuring crimp connections and a V0 inflammability class of insulation material according to UL94 standards, this insert ensures a secure and durable connection. With a wide operating temperature range from -40°C to 120°C and compliance with RoHS and REACH-SVHC standards, this connector insert is not only technically superior but also environmentally friendly, making it an ideal choice for various industrial applications.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Crimp
Connection Data Number Of Poles
24
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
24
Connection Data With Wire Protection
No
Contacts Contact Material
See contacts
Contacts Contact Resistance
⤠5 mΩ
Contacts Surface
See contacts
Contacts Wire Strip Length
8 mm
General Alternative Size
6H
General Brands
Wieland
General Inflammability Class Of Insulation Material According Wi
V0
General Mating Cycles
500
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
FEMALE INSERT DD BUC 24 1,5 25
General Modular Version
No
General Pollution Degree
3
General Type
Female Insert
Model With Housing
No
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Screws Head Design Clamping Screws
Z2/1.2 N·m
Screws Head Design Mounting Screws
Z1/0.5 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
250 V
Technical Data Din En 61984 Nominal Current
10 A
Technical Data Din En 61984 Nominal Voltage
250 V
Technical Data Din En 61984 Rated Impulse Voltage
4 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
26-14 AWG
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
2.5 mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
0.14 mm²
Technical Data Ulcsa Rated Current According Canadian Standards
20 A
Technical Data Ulcsa Rated Current According Underwriters Labora
8.5 A
