Wieland DIN Rail Fuse Terminal Block
Wieland DIN Rail Fuse Terminal Block
SKU:DIN-55fbe3
Reliable Wieland DIN Rail Fuse Terminal Block for safe electrical installations. 10A, 500V, V0-rated. Ideal for industrial and institutional use.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Wieland DIN Rail Fuse Terminal Block
$25.99
Quantity: 1
Claim Your Seller Account
Wieland DIN Rail Fuse Terminal Block
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

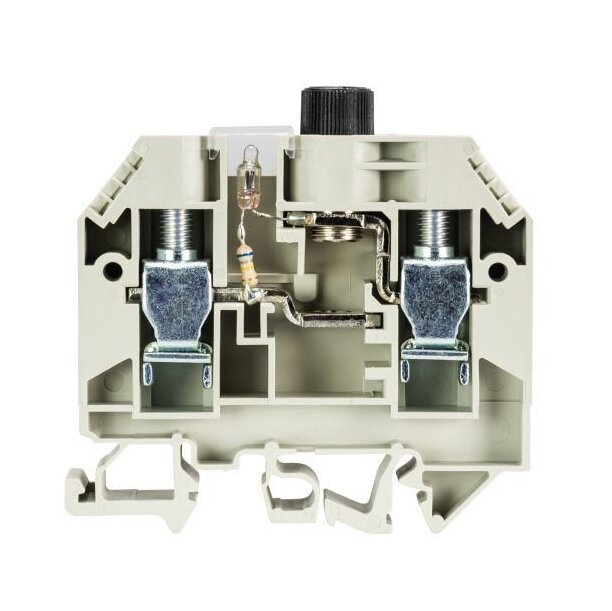

The Wieland WK 10/SI U 5X20M.NGL/V0 Fuse Terminal Block offers secure screw connections for easy mounting on TS 35 and TS 32 rails. With a 10 mm² nominal cross-section and a 5x20 mm G-Fuse insert, it provides reliable protection with a 10A rated current and a maximum rated voltage of 500V. This gray terminal block meets V0 inflammability standards and comes with a PA666 insulating housing, ensuring durability and safety in electrical installations. Suitable for various wire types and sizes, this terminal block is ideal for industrial, commercial, and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141116
Classification Etim 30 Classification
EC000899
Classification Etim 40 Classification
EC000899
Classification Etim 50 Classification
EC000899
Classification Etim 60 Classification
EC000899
Classification Etim 70 Classification
EC000899
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
10 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Maximum Stranded Cross Section
16 mm²
Connection Data Minimum Fine Stranded Cross Section
1 mm²
Connection Data Minimum Solid Cross Section
1 mm²
Connection Data Minimum Stranded Cross Section
16 mm²
Connection Data Wire Strip Length
13 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK 10/SI U 5X20M.NGL/V0
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
10 mm²
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
12 mm
Note Defect Indicator
Glow lamp
Note Maximum Operating Voltage Of Defective Display
250 V
Note Minimum Operating Voltage Of Defective Display
110 V
Note Remark To Maximum Rated Voltage
Note fuse insert
Note Remark To Rated Current
Note Fuse Insert
Note Voltage Type For Defect Indication
Alternating Current (AC)/Direct Current (DC)
Technical Data Closing Plate Required
Yes
Technical Data Fuse Insert
G-Fuse
Technical Data Fuse Insert Size
5 x 20 mm
Technical Data Length
65 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
