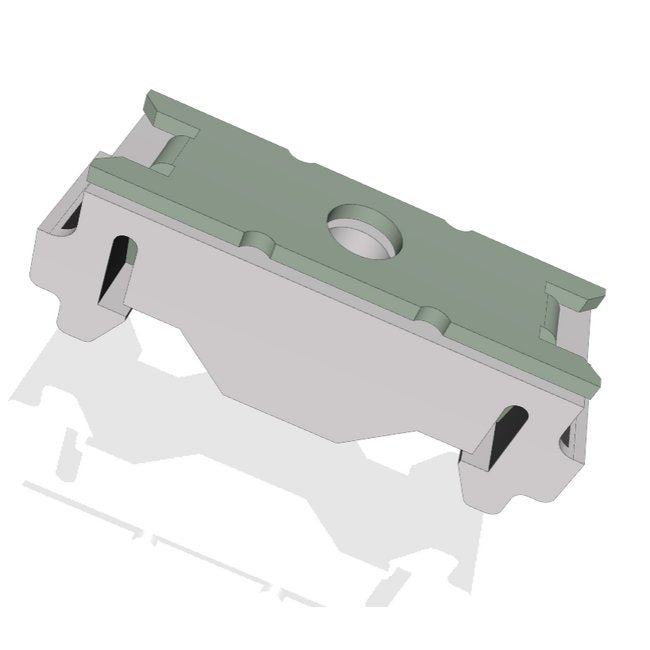

Wieland DIN Rail Terminal Block Mounting Sockets, TS M4 S35
Wieland DIN Rail Terminal Block Mounting Sockets, TS M4 S35
SKU:DIN-a59895
Secure Wieland TS M4 S35 Mounting Socket for 20 A, 630 V installations on DIN Rail.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland DIN Rail Terminal Block Mounting Sockets, TS M4 S35
$24.99
Quantity: 1
Claim Your Seller Account
Wieland DIN Rail Terminal Block Mounting Sockets, TS M4 S35
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience efficient electrical installations with the Wieland TS M4 S35 Rail Base Mounting Sockets. This gray socket features a single level with 4 clamp positions per level, suitable for 2.5 mm² cross-sections. With a mounting size of 35 x 7.5 mm for DIN Rail fixation, it offers a secure connection. Rated at 20 A and 630 V, this socket meets industry standards for electrical safety and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141126
Classification Etim 30 Classification
EC000902
Classification Etim 40 Classification
EC000902
Classification Etim 50 Classification
EC000902
Classification Etim 60 Classification
EC000902
Classification Etim 70 Classification
EC000902
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Minimum Fine Stranded Cross Section
0.2 mm²
Connection Data Minimum Solid Cross Section
0.14 mm²
Connection Data Wire Strip Length
11 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
TS M4 S35
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
35 x 7.5 mm
General Nominal Cross Section
2.5 mm²
General Number Of Clamp Positions Per Level
4
General Number Of Levels
1
General Width Grid Dimension
5 mm
Note Integrated Test Socket
No
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
85 mm
Technical Data Maximum Rated Voltage
630 V
Technical Data Pollution Degree
3
Technical Data Rated Current
20 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Terminal Blocks For Electrical Installations
Yes
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
24-12 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
24-12 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
20 A
Technical Data Ulcsa Factory Wiring Current
19 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
