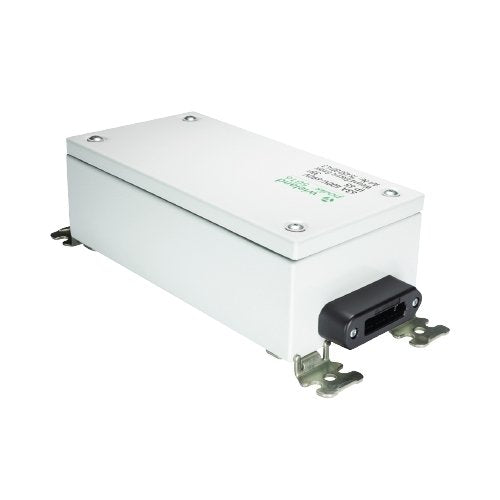

Wieland FCS 16 5 SA SAM50G Feed-In Module
Wieland FCS 16 5 SA SAM50G Feed-In Module
SKU:POD-46b8cd
Power up with the Wieland FCS Feed-In Module: 690V, 5-Pole, IP65, UL 61A, RoHS Compliant, cULus-Listed.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Wieland FCS 16 5 SA SAM50G Feed-In Module
$149.99
Quantity: 1
Claim Your Seller Account
Wieland FCS 16 5 SA SAM50G Feed-In Module
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland FCS 16 5 SA SAM50G Feed-In Module is a vital component in the Podis TC-ER Cable System, designed for seamless connection and power distribution in industrial settings. This 5-pole module boasts robust features including a 690V rated voltage, IP65 degree of protection, and UL 61A nominal current rating, ensuring reliable performance in demanding environments. With a color of light gray and dimensions L x W x H 300 x 145 x 100 mm, this module offers versatile mounting options and can accommodate cables with diameters up to 38 mm. Compliant with RoHS regulations and cULus-Listed standards, this feed-in module exemplifies Wieland's commitment to quality and reliability.
Product Specifications
Classification Eclass 81 Classification
27142409
Classification Etim 30 Classification
EC000214
Classification Etim 40 Classification
EC000214
Classification Etim 50 Classification
EC000214
Classification Etim 60 Classification
EC000214
Classification Etim 70 Classification
EC000214
Classification Etim 80 Classification
EC000214
Classification Etim 90 Classification
EC000214
Dimensions Assembly Height
100 mm
Dimensions Assembly Width
145 mm
Dimensions Length
300 mm
General Brands
Wieland
General Color
Light Gray
General Degree Of Protection Ip
IP65
General Maximum Ambient Temperature
55 ºC
General Maximum Operating Temperature
55 ºC
General Maximum Rated Flexible Finely Stranded Cross Section
35 mm²
General Maximum Transport Storage Temperature
70 ºC
General Minimum Ambient Temperature
-25 ºC
General Minimum Operating Temperature
-25 ºC
General Minimum Transport Storage Temperature
-40 ºC
General Model
FCS 16 5 SA SAM50G
General Rated Power Bus Cross Section
16 mm²
General Shock Resistance
IK10
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Specifications Standards
cULus-Listed
Technical Data Connection Type 1
Screw Connection
Technical Data Connection Type 2
Screw Connection
Technical Data Maximum Cable Diameter
38 mm
Technical Data Minimum Cable Diameter
30 mm
Technical Data Nominal Voltage Rating According To Underwriters
600 V
Technical Data Rated Operating Voltage Auxiliary Power
48 V
Technical Data Rated Voltage
690 V
Technical Data Rated Voltage According Canadian Standards Associ
600 V
Technical Data Rated Voltage According Underwriters Laboratories
600 V
Technical Data Type Of Supply Voltage
Alternating Current (AC)/Direct Current (DC)
