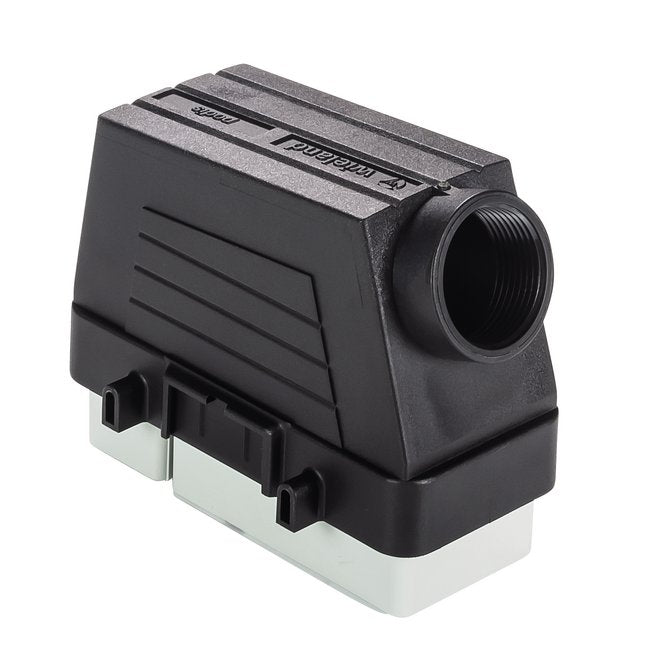

Wieland FCS 4.0 7 ST SA Podiscon Plug
Wieland FCS 4.0 7 ST SA Podiscon Plug
SKU:POD-eb479d
Reliable 7-pole plug for secure power transmission, IP65 rated, easy installation, RoHS & REACH-SVHC compliant
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland FCS 4.0 7 ST SA Podiscon Plug
$24.99
Quantity: 1
Claim Your Seller Account
Wieland FCS 4.0 7 ST SA Podiscon Plug
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland FCS 4.0 7 ST SA Podiscon Plug is a high-performance 7-pole plug designed for reliable power connections in challenging environments. With a rated voltage of 500V and a current capacity of 20A, this plug ensures secure power transmission. It features a threaded connector with an IP65 degree of protection, suitable for diverse applications. The durable construction supports a wide range of conductor cross-sections and offers easy installation with plug-in and screw connections. Compliant with RoHS and REACH-SVHC regulations, this plug upholds stringent environmental guidelines.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 30 Classification
EC002560
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Dimensions Assembly Height
79 mm
Dimensions Assembly Width
57 mm
Dimensions Length
94 mm
General Brands
Wieland
General Color
Black
General Degree Of Protection Ip
IP65
General Maximum Ambient Temperature
50 ºC
General Maximum Rated Flexible Finely Stranded Cross Section
4 mm²
General Maximum Rigid Solidstranded Conductor Cross Section
6 mm²
General Minimum Ambient Temperature
-30 ºC
General Minimum Rated Flexible Finely Stranded Cross Section
1.5 mm²
General Minimum Rigid Solidstranded Conductor Cross Section
1.5 mm²
General Model
FCS 4 7 ST SA SO2
General Rated Power Bus Cross Section
4 mm²
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Connection Type 1
Plug-In Connection
Technical Data Connection Type 2
Screw Connection
Technical Data Maximum Cable Diameter
25 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Number Of Clamp Positions Per Pole
1
Technical Data Number Of Poles
7
Technical Data Rated Current
20 A
Technical Data Rated Operating Current Auxiliary Power
20 A
Technical Data Rated Operating Voltage Auxiliary Power
50 V
