Wieland FCS 4 7 SA SA SW Distribution Module
Wieland FCS 4 7 SA SA SW Distribution Module
SKU:POD-39bff0
Wieland FCS 4 7 SA SA SW Distribution Module with 5 knock outs, IP65 protection, 4 mm² rated power bus cross-section, and 7 poles for reliable power distribution.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Wieland FCS 4 7 SA SA SW Distribution Module
$129.99
Quantity: 1
Claim Your Seller Account
Wieland FCS 4 7 SA SA SW Distribution Module
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland FCS 4 7 SA SA SW Distribution Module is a versatile solution for power distribution requirements in varying environments. With 5 knockouts accommodating 3 podis flat cables and 2 round cables, M20/M25 compatibility, and IP65 protection, this module ensures secure connections and reliable performance. It boasts a rated power bus cross-section of 4 mm², operating temperatures from -30°C to 55°C, and a sturdy construction meeting industry standards for durability. Suitable for surface mounting, this module offers 7 poles with 4 clamp positions each, supporting a maximum rated voltage of 500V and a rated current of 32A, making it ideal for demanding conditions.
Product Specifications
Classification Eclass 81 Classification
27142409
Classification Etim 30 Classification
EC000214
Classification Etim 40 Classification
EC000214
Classification Etim 50 Classification
EC000214
Classification Etim 60 Classification
EC000214
Classification Etim 70 Classification
EC000214

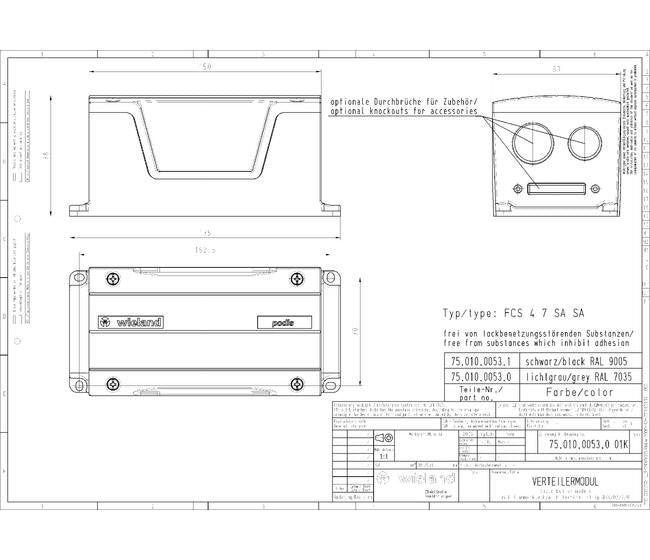

Dimensions Assembly Height
78 mm
Dimensions Assembly Width
83 mm
Dimensions Length
175 mm
General Brands
Wieland
General Color
Black
General Degree Of Protection Ip
IP65
General Maximum Operating Temperature
55 ºC
General Maximum Transport Storage Temperature
70 ºC
General Minimum Operating Temperature
-30 ºC
General Minimum Transport Storage Temperature
-40 ºC
General Model
FCS 4 7 SA SA SW
General Rated Power Bus Cross Section
4 mm²
Product Compliance Reach Svhc Conformity Status
Compliant
Technical Data Cold Storage Temperature En 60068 2 1
-30 ºC
Technical Data Cold Storage Time En 60068 2 1
96 h
Technical Data Connection Type 1
Screw Connection
Technical Data Connection Type 2
Screw Connection
Technical Data Humid Storage Relative Humidity Rh En 60068 2 78
95 %
Technical Data Humid Storage Temperature En 60068 2 78
55 ºC
Technical Data Humid Storage Time En 60068 2 78
96 h
Technical Data Maximum Cable Diameter
18 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Maximum Rated Voltage Underwriters Laboratories U
600 V
Technical Data Minimum Cable Diameter
9 mm
Technical Data Mounting Method
Surface Mounting
Technical Data Number Of Clamp Positions Per Pole
4
Technical Data Number Of Poles
7
Technical Data Rated Current
32 A
Technical Data Rated Operating Current Auxiliary Power
32 A
Technical Data Rated Operating Voltage Auxiliary Power
250 V
Technical Data Type Of Supply Voltage
Alternating Current (AC)/Direct Current (DC)
