Wieland FCS 4 7 SI FK Connecting Module
Wieland FCS 4 7 SI FK Connecting Module
SKU:POD-340862
High-performance Wieland Connecting Module for efficient power distribution, featuring IP65 protection and RoHS compliance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Wieland FCS 4 7 SI FK Connecting Module
$39.99
Quantity: 1
Claim Your Seller Account
Wieland FCS 4 7 SI FK Connecting Module
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland FCS 4 7 SI FK Connecting Module is a high-performance 7-pole module designed for reliable power distribution in commercial and industrial settings. With a rated voltage of 500V and a rated current of 20A, this module ensures efficient power transmission. It features IP65 protection, insulating piercing contact, spring terminals, and 4 knock-outs for versatile connectivity. The module complies with RoHS standards, ensuring environmentally friendly manufacturing processes. Ideal for Podis TC-ER Cable System applications, this connecting module meets the highest quality and safety standards.
Product Specifications
Classification Eclass 81 Classification
27142409
Classification Etim 30 Classification
EC000214
Classification Etim 40 Classification
EC000214
Classification Etim 50 Classification
EC000214
Classification Etim 60 Classification
EC000214
Classification Etim 70 Classification
EC000214

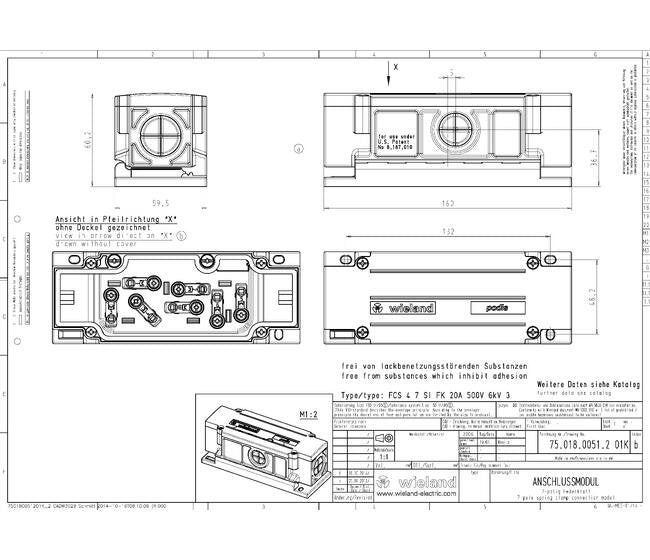

Dimensions Assembly Height
60 mm
Dimensions Assembly Width
60 mm
Dimensions Length
160 mm
General Brands
Wieland
General Color
Black
General Degree Of Protection Ip
IP65
General Maximum Operating Temperature
55 ºC
General Maximum Transport Storage Temperature
70 ºC
General Minimum Operating Temperature
-30 ºC
General Minimum Transport Storage Temperature
-40 ºC
General Model
FCS 4 7 SI FK
General Rated Cross Section Power Bus
4 mm²
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Cold Storage Temperature En 60068 2 1
-40 ºC
Technical Data Cold Storage Time En 60068 2 1
96 h
Technical Data Connection Type 1
Insulation Piercing Connection
Technical Data Connection Type 2
Spring Clamp Connection
Technical Data Humid Storage Relative Humidity Rh En 60068 2 78
95 %
Technical Data Humid Storage Temperature En 60068 2 78
55 ºC
Technical Data Humid Storage Time En 60068 2 78
96 h
Technical Data Maximum Cable Diameter
18 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Maximum Rated Voltage Underwriters Laboratories U
600 V
Technical Data Minimum Cable Diameter
9 mm
Technical Data Mounting Method
Surface Mounting
Technical Data Number Of Clamp Positions Per Pole
1
Technical Data Number Of Poles
7
Technical Data Rated Operating Current Auxiliary Power
20 A
Technical Data Rated Operating Voltage Auxiliary Power
250 V
Technical Data Type Of Supply Voltage
Alternating Current (AC)/Direct Current (DC)
