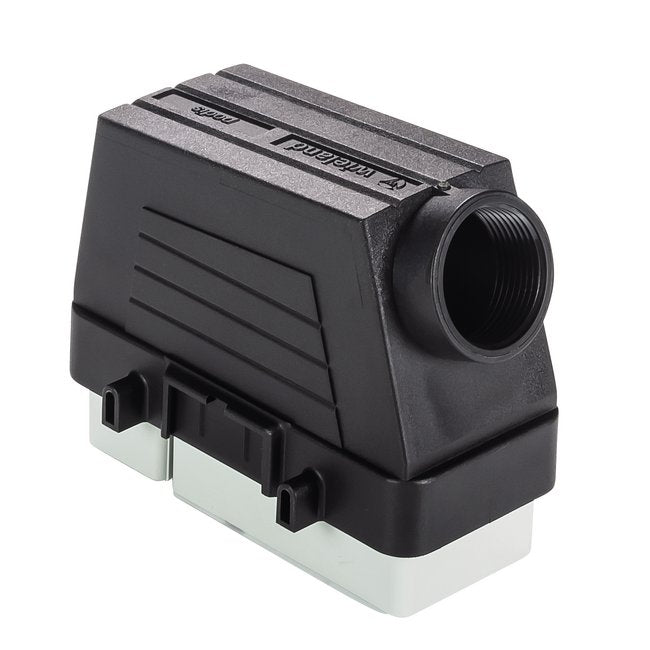

Wieland FCS 4 7 ST SA SO2 Podiscon Plug - 7-Pole Cable Plug
Wieland FCS 4 7 ST SA SO2 Podiscon Plug - 7-Pole Cable Plug
SKU:POD-6af32a
Reliable Wieland 7-Pole Cable Plug with 20A, 500V rating, IP65 protection, and RoHS compliance. Ideal for institutional procurement.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Wieland FCS 4 7 ST SA SO2 Podiscon Plug - 7-Pole Cable Plug
$34.99
Quantity: 1
Claim Your Seller Account
Wieland FCS 4 7 ST SA SO2 Podiscon Plug - 7-Pole Cable Plug
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland FCS 4 7 ST SA SO2 Podiscon Plug is a premium 7-pole cable plug designed for high-performance electrical connections. With a rated current of 20A and maximum voltage of 500V, this plug meets stringent industry standards for reliability and safety. It features a secure screw connection, IP65 protection against dust and water ingress, and a durable black color finish. Suitable for round cables with diameters ranging from 9-16mm, this plug ensures a stable and efficient power supply in demanding environments. Compliant with RoHS regulations and designed for easy installation, the Wieland Podiscon Plug is a top choice for institutional and government procurement needs.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 30 Classification
EC002560
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Dimensions Assembly Height
79 mm
Dimensions Assembly Width
57 mm
Dimensions Length
94 mm
General Brands
Wieland
General Color
Black
General Degree Of Protection Ip
IP65
General Maximum Ambient Temperature
50 ºC
General Maximum Rated Flexible Finely Stranded Cross Section
4 mm²
General Maximum Rigid Solidstranded Conductor Cross Section
6 mm²
General Minimum Ambient Temperature
-30 ºC
General Minimum Rated Flexible Finely Stranded Cross Section
1.5 mm²
General Minimum Rigid Solidstranded Conductor Cross Section
1.5 mm²
General Model
FCS 4 7 ST SA SO0
General Rated Power Bus Cross Section
4 mm²
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Cold Storage Temperature En 60068 2 1
-40 ºC
Technical Data Cold Storage Time En 60068 2 1
96 h
Technical Data Connection Type 1
Plug-In Connection
Technical Data Connection Type 2
Screw Connection
Technical Data Maximum Cable Diameter
25 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Number Of Clamp Positions Per Pole
1
Technical Data Number Of Poles
7
Technical Data Rated Current
20 A
Technical Data Rated Operating Current Auxiliary Power
20 A
Technical Data Rated Operating Voltage Auxiliary Power
50 V
