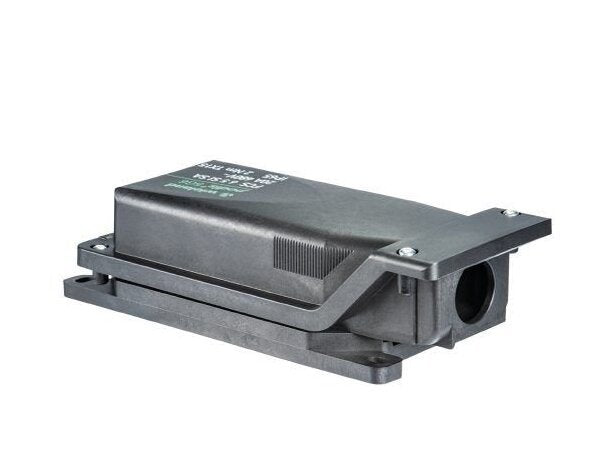

Wieland FCS 6 5 SI SA M25 LH Connecting Module
Wieland FCS 6 5 SI SA M25 LH Connecting Module
SKU:POD-4650a6
Reliable Wieland connecting module for Podis TC-ER Cable System, 5-pole, 20A, IP65 rated, RoHS & REACH-SVHC compliant
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland FCS 6 5 SI SA M25 LH Connecting Module
$49.99
Quantity: 1
Claim Your Seller Account
Wieland FCS 6 5 SI SA M25 LH Connecting Module
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland FCS 6 5 SI SA M25 LH Connecting Module is a vital component of the Podis TC-ER Cable System, designed for reliable fixed wiring connections. With a 5-pole configuration and impressive nominal ratings of 20A at 690V, this module ensures efficient power distribution. Featuring an IP65 degree of protection, it guarantees durability in various environments. The innovative design includes insulation piercing and screw connections, accommodating cable diameters from 9mm to 18mm. Compliant with RoHS and REACH-SVHC standards, this module meets high industry requirements for environmental responsibility and safety.
Product Specifications
Classification Eclass 81 Classification
27142409
Classification Etim 30 Classification
EC000214
Classification Etim 40 Classification
EC000214
Classification Etim 50 Classification
EC000214
Classification Etim 60 Classification
EC000214
Classification Etim 70 Classification
EC000214
Dimensions Assembly Height
59 mm
Dimensions Assembly Width
84 mm
Dimensions Length
243 mm
General Brands
Wieland
General Color
Black
General Degree Of Protection Ip
IP65
General Maximum Operating Temperature
55 ºC
General Maximum Transport Storage Temperature
70 ºC
General Minimum Operating Temperature
-25 ºC
General Minimum Transport Storage Temperature
-40 ºC
General Model
FCS 6 5 SI SA M25 LH
General Rated Cross Section Power Bus
6 mm²
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Connection Type 1
Insulation Piercing Connection
Technical Data Connection Type 2
Screw Connection
Technical Data Maximum Cable Diameter
18 mm
Technical Data Maximum Rated Voltage
690 V
Technical Data Minimum Cable Diameter
9 mm
Technical Data Mounting Method
Surface Mounting
Technical Data Number Of Clamp Positions Per Pole
1
Technical Data Number Of Poles
5
Technical Data Rated Current
20 A
Technical Data Type Of Supply Voltage
Alternating Current (AC)/Direct Current (DC)
