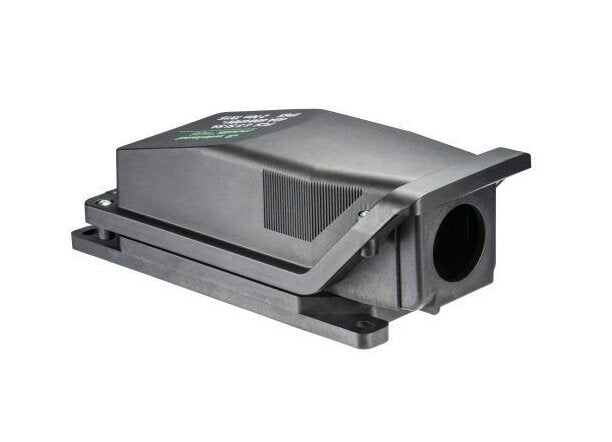

Wieland FCS 6 5 SI SA M32 Connecting Module
Wieland FCS 6 5 SI SA M32 Connecting Module
SKU:POD-b47ec3
High-quality 5-pole connecting module with IP65 protection, suitable for diverse cable diameters. RoHS and REACH-SVHC compliant.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Wieland FCS 6 5 SI SA M32 Connecting Module
$89.99
Quantity: 1
Claim Your Seller Account
Wieland FCS 6 5 SI SA M32 Connecting Module
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland FCS 6 5 SI SA M32 Connecting Module is a high-quality 5-pole connection module designed for fixed wiring applications. With a maximum rated voltage of 690V and a rated current of 41A, this module ensures reliable power distribution. It features IP65 degree of protection, accommodating cable diameters ranging from 10mm to 25mm. The module's black housing, piercing contacts, and Torx 15 screws offer durability and ease of installation. Compliant with RoHS and REACH-SVHC standards, this connecting module meets stringent environmental requirements, making it an ideal choice for both consumer and institutional buyers.
Product Specifications
Classification Eclass 81 Classification
27142409
Classification Etim 30 Classification
EC000214
Classification Etim 40 Classification
EC000214
Classification Etim 50 Classification
EC000214
Classification Etim 60 Classification
EC000214
Classification Etim 70 Classification
EC000214
Dimensions Assembly Height
74 mm
Dimensions Assembly Width
84 mm
Dimensions Length
248 mm
General Brands
Wieland
General Color
Black
General Degree Of Protection Ip
IP65
General Maximum Operating Temperature
55 ºC
General Maximum Transport Storage Temperature
70 ºC
General Minimum Operating Temperature
-25 ºC
General Minimum Transport Storage Temperature
-40 ºC
General Model
FCS 6 5 SI SA M32
General Rated Cross Section Power Bus
6 mm²
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Connection Type 1
Insulation Piercing Connection
Technical Data Connection Type 2
Screw Connection
Technical Data Maximum Cable Diameter
25 mm
Technical Data Maximum Rated Voltage
690 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Mounting Method
Surface Mounting
Technical Data Number Of Clamp Positions Per Pole
1
Technical Data Number Of Poles
5
Technical Data Rated Current
41 A
Technical Data Type Of Supply Voltage
Alternating Current (AC)/Direct Current (DC)
