Wieland Feed-Through Terminal Block WKF2.5 - Blue
Wieland Feed-Through Terminal Block WKF2.5 - Blue
SKU:DIN-269a37
Reliable Wieland Feed-Through Terminal Block for secure electrical connections and compliance with RoHS & REACH-SVHC.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Wieland Feed-Through Terminal Block WKF2.5 - Blue
$12.99
Quantity: 1
Claim Your Seller Account
Wieland Feed-Through Terminal Block WKF2.5 - Blue
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

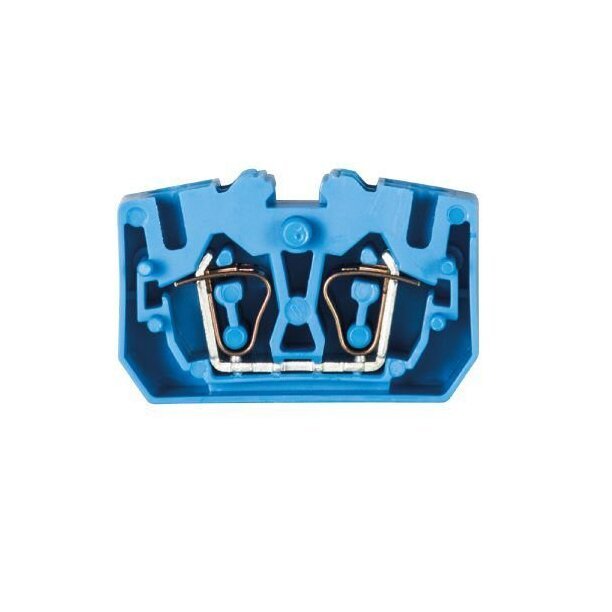

The Wieland WKF2.5/MD/F BLAU Feed-Through Terminal Block is designed for direct mounting, featuring a tension spring connection for secure electrical installations. With a nominal cross-section of 2.5mm² and a rated current of 24A, this terminal block offers reliable performance. It meets various standards including UL94 V2 for insulation material and is compliant with RoHS and REACH-SVHC directives, ensuring environmental responsibility.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Minimum Fine Stranded Cross Section
0.13 mm²
Connection Data Minimum Solid Cross Section
0.13 mm²
Connection Data Wire Strip Length
11 mm
General Brands
Wieland
General Color
Blue
General Explosion Tested Version Ex E
No
General Inflammability Class Of Insulation Material According Wi
V2
General Insulating Housing
PA66
General Model
WKF2,5/MD/ F BLAU
General Mounting Method
Direct Mounting
General Nominal Cross Section
2.5 mm²
General Number Of Clamp Positions Per Level
4
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
10 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
36 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
24 A
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
24-12 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-12 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
25 A
Technical Data Ulcsa Factory Wiring Current
20 A
Technical Data Ulcsa Field Wiring Current
20 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
