Wieland FEMALE INSERT BAS BUS 24 2.5 50 Industrial Connector Insert
Wieland FEMALE INSERT BAS BUS 24 2.5 50 Industrial Connector Insert
SKU:IND-88bafd
Reliable Wieland industrial connector insert for efficient power transmission with 24 poles, 16A rated current, and 500V rated voltage.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland FEMALE INSERT BAS BUS 24 2.5 50 Industrial Connector Insert
$29.99
Quantity: 1
Claim Your Seller Account
Wieland FEMALE INSERT BAS BUS 24 2.5 50 Industrial Connector Insert
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

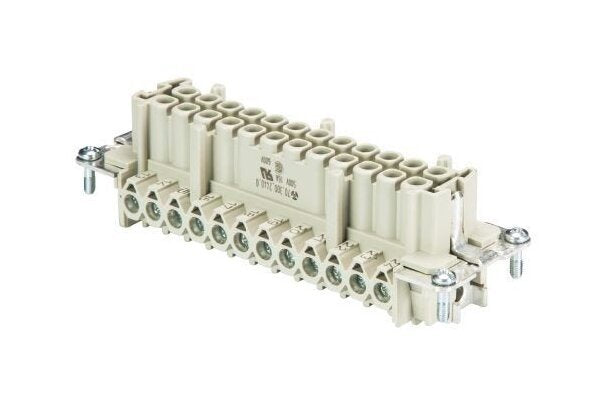

The Wieland FEMALE INSERT BAS BUS 24 2.5 50 Industrial Connector Insert is a reliable solution for industrial multipole connectors. This female insert features 24 poles with a rated current of 16A and a rated voltage of 500V, ensuring efficient power transmission. With tin-plated contacts and a durable construction, this connector insert offers high performance and longevity. It complies with various technical standards, making it ideal for both consumer and institutional applications.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Screw Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
2.5 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
0.5 mm²
Connection Data Number Of Poles
24
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
24
Connection Data With Wire Protection
Yes
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠1.5 mΩ
Contacts Surface
Tin-Plated
Contacts Wire Strip Length
7 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Mating Cycles
200
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
FEMALE INSERT BAS BUS 24 2,5 50
General Modular Version
No
General Pollution Degree
3
General Type
Female Insert
Model With Housing
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Screws Head Design Clamping Screws
H1/0.5-0.7 N·m
Screws Head Design Ground Conductor Screws
H2/1.2-1.6 N·m
Screws Head Design Mounting Screws
H1/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
500 V
Technical Data Din En 61984 Nominal Current
16 A
Technical Data Din En 61984 Nominal Voltage
500 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
