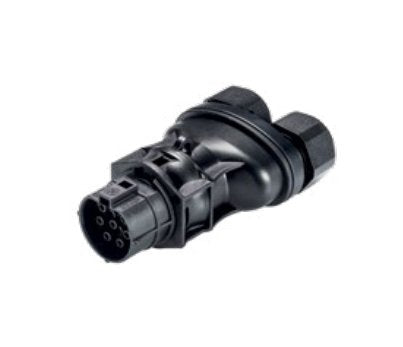

Wieland Female Splitter Connector, Black, 10mm Cable Diameter, 7 Poles

Name: Wieland Female Splitter Connector, Black, 10mm Cable Diameter, 7 Poles
Brand: Wieland Electric Inc.
SKU: CIR-313a4b
Price: 28.99 USD
Availability: OutOfStock

SKU:CIR-313a4b

Reliable Wieland Female Splitter Connector in Black with IP69, 10mm Cable Diameter, 7 Poles. Voltage up to 600V. IEC and cURus standards compliant.

$28.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wieland Female Splitter Connector in Black is a reliable solution for electrical connections with a screw connection type. It features an IP69 rating for outdoor use, accommodating cable diameters from 10mm to 14mm. With a voltage range of 250V to 600V and current ratings meeting IEC and cURus standards, this connector is suitable for various applications where performance and durability are essential. Trust in Wieland's expertise and adherence to cULus-Listed | IEC standards for a secure and efficient electrical connection solution.

Product Specifications

Note Note

Technical details are subject to change

Specifications Color Of Codingcontact Carrier

Black

Specifications Connection Type

Screw Connection

Specifications Current According To Canadian Ul Recognized Unite

3 x 16 A + 4 x 2 A (Canada) | 3 x 20 A + 4 x 5 A (USA)

Specifications Current According To International Electrotechnic

3 x 20 A + 4 x 5 A

Specifications Degree Of Protection According To Canadian Ul Rec

Type 4X/6P

Specifications Degree Of Protection According To International E

IP69

Specifications Maximum Cable Diameter

14 mm

Specifications Minimum Cable Diameter

10 mm

Specifications Model

Female

Specifications Number Of Poles

Specifications Standards

cULus-Listed | IEC

Specifications Voltage

250 V | 400 V | 600 V

Specifications Wire Size According To Canadian Ul Recognized Uni

20 to 14 AWG

Specifications Wire Size According To International Electrotechn

0.2 to 1.5 mmÂ²
