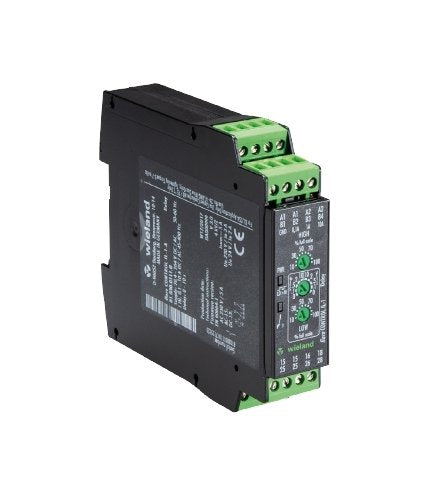

Wieland Flare Control I-1-A Monitoring Relay
Wieland Flare Control I-1-A Monitoring Relay
SKU:MEA-464e82
Monitor single-phase current accurately with the Wieland Flare Control I-1-A Relay. Ideal for AC/DC voltage inputs, adjustable hysteresis, and customizable switching delays.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Wieland Flare Control I-1-A Monitoring Relay
$159.99
Quantity: 1
Claim Your Seller Account
Wieland Flare Control I-1-A Monitoring Relay
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Flare Control I-1-A Monitoring Relay is designed for precise monitoring of single-phase current within a frequency range of 45 to 400 Hz. It offers a measuring range of 0.01 to 10 A and is compatible with AC/DC voltage inputs ranging from 24 to 230 VAC. This relay features adjustable hysteresis, customizable switching delays, and compact dimensions of 22.5mm x 96.5mm x 114mm. With reliable screw connections and detachable clamps, this relay ensures secure and efficient operations in diverse industrial settings.
Product Specifications
Classification Eclass 81 Classification
27371802
Classification Etim 40 Classification
EC001440
Classification Etim 50 Classification
EC001440
Classification Etim 60 Classification
EC001440
Classification Etim 70 Classification
EC001440
Classification Etim 80 Classification
EC001440
Classification Etim 90 Classification
EC001440
Dimensions Depth
114 mm
Dimensions Height
96.5 mm
Dimensions Width
22.5 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Detachable Clamps
Yes
General Function Over Voltage Detection
No
General Function Phase Imbalance Monitoring
No
General Function Under Voltage Detection
No
General Maximum Response Delay
10 s
General Minimum Response Delay
0 s
General Model
I-1-A
General Number Of Change Over Contacts
2
General Number Of Measuring Circuits
3
General Phase Failure Monitoring
No
General Phase Sequence Monitoring
No
Product Compliance Reach Svhc Cas Numbers
12626-81-2 | 7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead | Lead Titanium Zirconium Oxide
Product Compliance Rohs Conformity Status
Compliant | Exempted
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Alternating Current Ac Rated Consumption
4 V·A
Technical Data Degree Of Protection Ip
IP20
Technical Data Direct Current Dc Rated Consumption
2 W
Technical Data Electrical Isolation Supply Circuit Control Circu
Yes
Technical Data Electrical Life Time Ac1
0.1 x 106
Technical Data Function
Closed Circuit | Operating Circuit Principle
Technical Data Isolation Voltage
2 kV
Technical Data Lower Threshold Measuring Range
50 to 95 % of Upper Threshold
Technical Data Maximum Alternating Current Ac Input Voltage
264 V
Technical Data Maximum Direct Current Dc Input Voltage
264 V
Technical Data Minimum Alternating Current Ac Input Voltage
20.4 V
Technical Data Minimum Direct Current Dc Input Voltage
20.4 V
