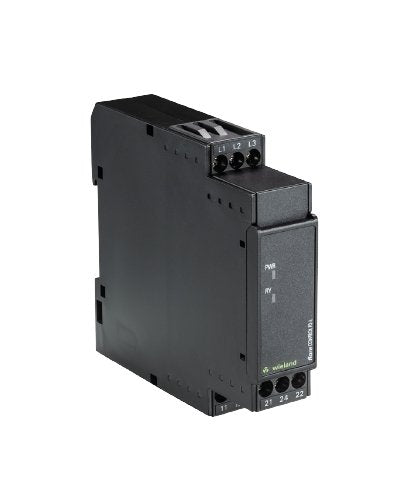

Wieland Flare Control P3-L Phase Monitoring Relay
Wieland Flare Control P3-L Phase Monitoring Relay
SKU:MEA-587868
Reliable Wieland Flare Control P3-L Monitoring Relay for industrial phase sequence and phase loss monitoring, 200-500 VAC, 2 change-over contacts.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Wieland Flare Control P3-L Phase Monitoring Relay
$89.99
Quantity: 1
Claim Your Seller Account
Wieland Flare Control P3-L Phase Monitoring Relay
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Flare Control P3-L Monitoring Relay is a top-of-the-line three-phase phase sequence and phase loss relay designed for reliable performance in industrial settings. With a wide rated voltage range of 200 to 500 VAC, this relay is equipped with 2 change-over contacts for seamless operation. Featuring screw connections and detachable clamps, it offers precise phase sequence monitoring and phase failure monitoring without the need for auxiliary supply voltage. This relay ensures optimal safety with functions like under voltage and over voltage detection disabled, in a compact housing of 22.5mm x 95mm x 100mm.
Product Specifications
Classification Eclass 81 Classification
27371803
Classification Etim 40 Classification
EC001441
Classification Etim 50 Classification
EC001414
Classification Etim 60 Classification
EC001441
Classification Etim 70 Classification
EC001441
Classification Etim 80 Classification
EC001441
Classification Etim 90 Classification
EC001441
Dimensions Depth
100 mm
Dimensions Height
100 mm
Dimensions Width
22.5 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Detachable Clamps
Yes
General Function Over Voltage Detection
No
General Function Phase Imbalance Monitoring
No
General Function Under Voltage Detection
No
General Model
P3-L
General Number Of Change Over Contacts
2
General Number Of Measuring Circuits
1
General Phase Failure Monitoring
Yes
General Phase Sequence Monitoring
Yes
General Type Of Excitation
Alternating Current (AC)
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant | Exempted
Product Compliance Rohs Exceptions
III-6(c)
Specifications Certificationapproval
Underwriters Laboratories Recognized for Canada and United States (cRUus)
Technical Data Degree Of Protection Ip
IP20
Technical Data Detection Time Ta
0.1 s
Technical Data Electrical Life Time Ac1
0.05 x 106
Technical Data Maximum Operating Voltage
500 V
Technical Data Mechanical Life Time
107 Switching Cycles
Technical Data Minimum Operating Voltage
200 V
Technical Data Mounting Method
DIN Rail (Top Hat Rail) 35 mm
Technical Data Number Of Phases
3
Technical Data Switching Current
⤠6 A
Technical Data Wire Range Solidfine Stranded
0.14 to 4 mm²
