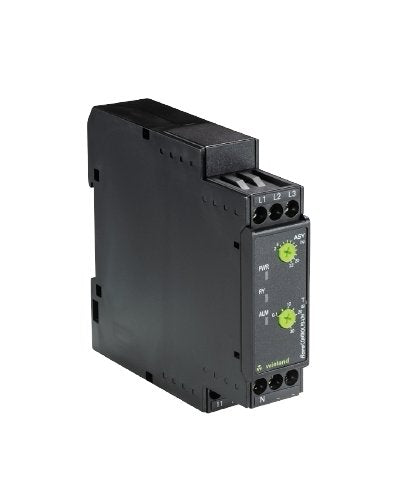

Wieland Flare Control P3-LTN Monitoring Relay
Wieland Flare Control P3-LTN Monitoring Relay
SKU:MEA-7cc77e
Versatile three-phase monitoring relay with phase imbalance detection, under/over-voltage protection, and detachable clamps for industrial applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Wieland Flare Control P3-LTN Monitoring Relay
$99.99
Quantity: 1
Claim Your Seller Account
Wieland Flare Control P3-LTN Monitoring Relay
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Flare Control P3-LTN Monitoring Relay is a versatile three-phase relay designed for monitoring phase asymmetry, sequence, and loss without the need for auxiliary power. With an adjustable voltage range from 220 to 480 VAC, this relay features phase imbalance monitoring, under/over-voltage detection, and detachable clamps. It offers reliable performance with a switching current of ≤ 6 A and a mechanical life of 107 switching cycles. This compact relay, with dimensions of 22.5mm x 95mm x 100mm, is ideal for industrial applications requiring precise monitoring and control.
Product Specifications
Classification Eclass 81 Classification
27371803
Classification Etim 40 Classification
EC001441
Classification Etim 50 Classification
EC001441
Classification Etim 60 Classification
EC001441
Classification Etim 70 Classification
EC001441
Classification Etim 80 Classification
EC001441
Classification Etim 90 Classification
EC001441
Dimensions Depth
100 mm
Dimensions Height
100 mm
Dimensions Width
22.5 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Detachable Clamps
Yes
General Function Over Voltage Detection
Yes
General Function Phase Imbalance Monitoring
Yes
General Function Under Voltage Detection
Yes
General Model
P3-LTN
General Number Of Change Over Contacts
1
General Number Of Measuring Circuits
1
General Phase Failure Monitoring
Yes
General Phase Sequence Monitoring
Yes
General Type Of Excitation
Alternating Current (AC)
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant | Exempted
Product Compliance Rohs Exceptions
III-6(c)
Specifications Certificationapproval
Underwriters Laboratories Recognized for Canada and United States (cRUus)
Technical Data Alternating Current Ac Supply Voltage 3 Phase3 Wi
380 V | 400 V | 415 V | 480 V
Technical Data Alternating Current Ac Supply Voltage 3 Phase4 Wi
220 V | 230 V | 240 V | 277 V
Technical Data Degree Of Protection Ip
IP20
Technical Data Detection Range For Asymmetry
2 to 22 %
Technical Data Detection Time At Asymmetry
0.1 to 30 s
Technical Data Electrical Life Time Ac1
0.05 x 106
Technical Data Maximum Operating Temperature
60 ºC
Technical Data Mechanical Life Time
107 Switching Cycles
Technical Data Minimum Operating Temperature
-20 ºC
Technical Data Mounting Method
DIN Rail (Top Hat Rail) 35 mm
Technical Data Number Of Phases
3
Technical Data Switching Current
⤠6 A
