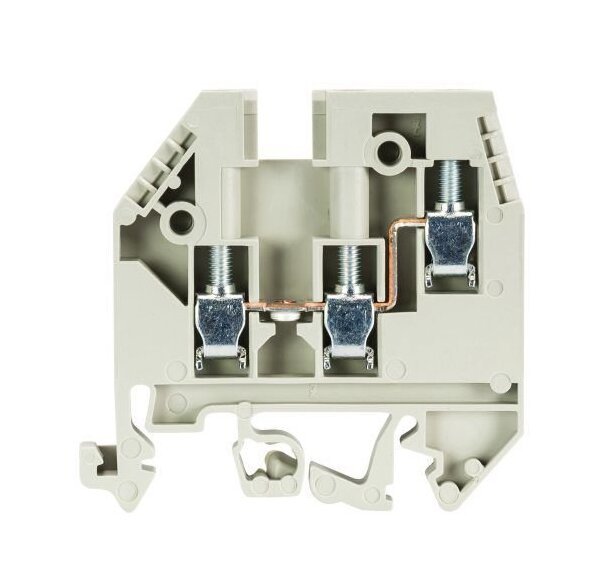

The Wieland Gray WK 4/D1/2U/V0 Duo-Modular Terminal Block offers unparalleled reliability with a screw connection designed for TS 35 and TS 32 mounting. With a nominal cross-section of 4mm² and sturdy PA666 insulating housing, this terminal block is ideal for industrial applications requiring a rated current of 32A at a maximum voltage of 800V. Its V0 inflammability class and explosion-tested version ensure safety in critical environments. Meet stringent compliance standards effortlessly with Wieland.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Torque Conductor Mounting
0.5 N·m
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK 4/D1/2U/V0
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
3
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Specifications Certificationapproval
ATEX | Canadian (CAN-EX) | Canadian Standards Association (CSA) | UR | USA-EX
Technical Data Closing Plate Required
Yes
Technical Data Length
52.3 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
32 A
Technical Data Rated Impulse Voltage
6 V
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
20-10 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-10 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
30 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
