Wieland Gray Modular Connector Male Frame - 2 Module Capacity
Wieland Gray Modular Connector Male Frame - 2 Module Capacity
SKU:IND-e0ea26
Durable Wieland Gray Modular Connector Male Frame for 2 modules. Ideal for industrial multipole connectors.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Wieland Gray Modular Connector Male Frame - 2 Module Capacity
$34.99
Quantity: 1
Claim Your Seller Account
Wieland Gray Modular Connector Male Frame - 2 Module Capacity
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

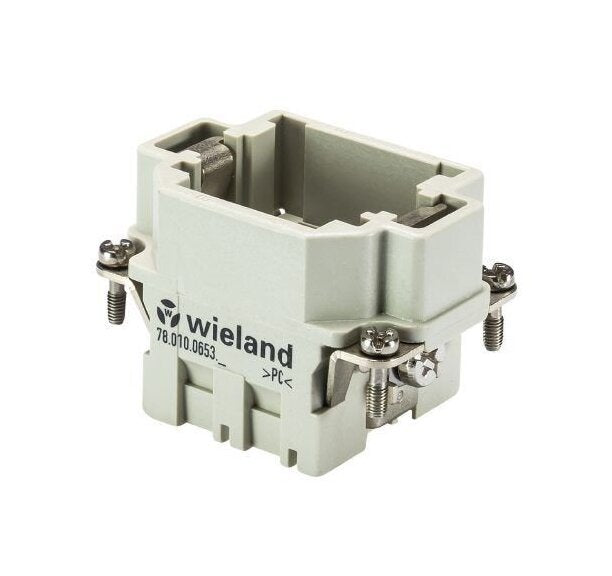

The Wieland Gray Modular Connector System Male Frame is designed for 2 modules, offering exceptional durability in industrial multipole connector applications. With a temperature range from -40°C to 120°C and V0-rated plastic construction, this frame ensures reliable performance in extreme conditions. Featuring earthing connection, ground conductor screws, and easy mounting, this frame provides secure connectivity and meets ECLASS and ETIM classifications.
Product Specifications
Classification Eclass 81 Classification
27440210
Classification Etim 30 Classification
EC002310
Classification Etim 40 Classification
EC002310
Classification Etim 50 Classification
EC002310
Classification Etim 60 Classification
EC002310
Classification Etim 70 Classification
EC002310
General Brands
Wieland
General Color
Gray
General Construction
6
General Earthing Connection
Yes
General Ground Conductor Screws Slot
Z2/1.2 N·m
General Inflammability Class Of Insulation Material According Wi
V0
General Material
Plastic
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
Pin Insert
General Mounting Screws
Z1/0.5 N·m
General Number Of Positions
2
