Wieland Gray WK 4 Clamp Duo-Modular Terminal Block
Wieland Gray WK 4 Clamp Duo-Modular Terminal Block
SKU:DIN-9374d9
Secure electrical connections with Wieland Gray WK 4 Clamp Duo-Modular Terminal Block. DIN Rail mounted, 32A rated current, 800V max rated voltage.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Wieland Gray WK 4 Clamp Duo-Modular Terminal Block
$25.99
Quantity: 1
Claim Your Seller Account
Wieland Gray WK 4 Clamp Duo-Modular Terminal Block
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

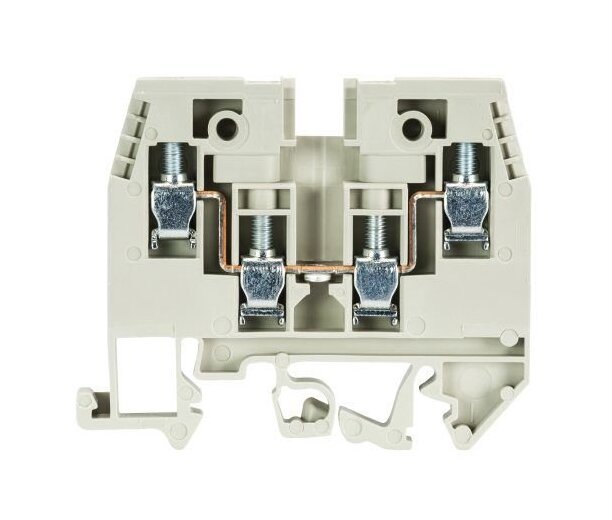

The Wieland Gray WK 4 Clamp Duo-Modular Terminal Block is a versatile solution for secure electrical connections. With a nominal cross-section of 4mm², this terminal block ensures reliable performance. It features a screw connection, DIN Rail mounting, and meets various technical standards like rated current of 32A and maximum rated voltage of 800V. This block is ideal for industrial applications requiring robust and compliant components.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Torque Conductor Mounting
0.5 N·m
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
No
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK 4/D2/2U/V0
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
4
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Specifications Certificationapproval
ATEX | Canadian (CAN-EX) | Canadian Standards Association (CSA) | UR | USA-EX
Technical Data Closing Plate Required
Yes
Technical Data Length
60 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
32 A
Technical Data Rated Impulse Voltage
6 V
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
20-10 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-10 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
30 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
