Wieland GST15I2S B1 ZR1WW BL02 Indoor Electrical Connector
Wieland GST15I2S B1 ZR1WW BL02 Indoor Electrical Connector
SKU:ELE-3c3c57
Premium 2-pole female indoor connector with strain relief, 16A, 600V, RoHS & REACH compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland GST15I2S B1 ZR1WW BL02 Indoor Electrical Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland GST15I2S B1 ZR1WW BL02 Indoor Electrical Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

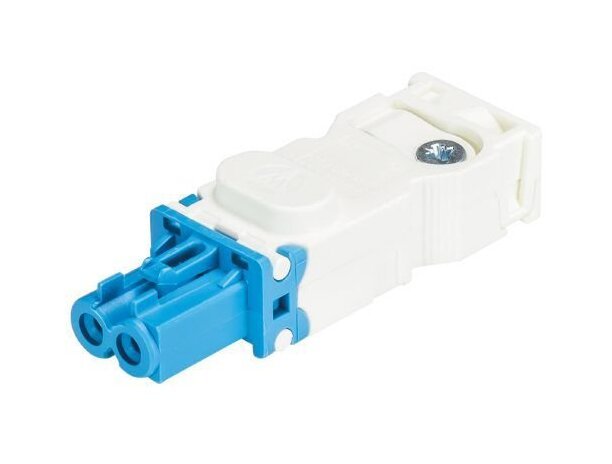

The Wieland GST15I2S B1 ZR1WW BL02 is a premium 2-pole female connector designed for indoor use, featuring a screw connection with a tall strain relief for secure cable management. With a rated current of 16 A and a maximum rated voltage of 600 V, this connector is suitable for cable diameters ranging from 6 to 7.7 mm. Its mechanical coding in light blue ensures proper identification, and the strain relief in white adds durability. Compliant with RoHS and REACH-SVHC regulations, this connector is not only reliable but also environmentally friendly. Ideal for institutional procurement needs.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
7.7 mm
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Minimum Cable Diameter
6 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.5 mm²
Connection Data Minimum Solid Connection Cross Section
0.5 mm²
Connection Data Sheath Strip Length
21 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm
Dimensions Height
13.8 mm
Dimensions Length
53.2 mm
Dimensions Width
17.7 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Light Blue
General Color Of Housing Inclusive Strain Relief
White
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
1 | 2
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 3
General Model
GST15I2S B1 ZR1WW BL02
General Number Of Poles
2
General Pollution Degree
2
General Rated Current
16 A
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.048 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Silver-Plated
Model Connection Type
Female
Model Degree Of Protection Ip
IP20
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
