Wieland GST15I3S B1 ZR1W SW Indoor Electrical Connector
Wieland GST15I3S B1 ZR1W SW Indoor Electrical Connector
SKU:ELE-6a8b11
High-quality Wieland 3-pole female connector for indoor use, with strain relief and black color coding. Meets RoHS and REACH-SVHC standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland GST15I3S B1 ZR1W SW Indoor Electrical Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland GST15I3S B1 ZR1W SW Indoor Electrical Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

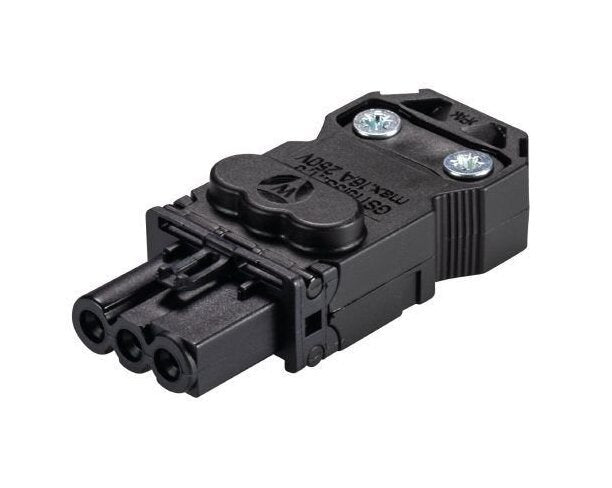

The Wieland GST15I3S B1 ZR1W SW Indoor Connector is a top-of-the-line 3-pole female connector designed for indoor applications. With a screw connection and a maximum rated voltage of 600V, this connector ensures reliable power transmission. It features strain relief for added durability, a black color scheme for easy coding, and is compliant with RoHS and REACH-SVHC standards. Measuring 53.2mm in length, 23mm in width, and 13.8mm in height, this connector meets the highest industry standards.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
9 mm
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Minimum Cable Diameter
5.5 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.5 mm²
Connection Data Minimum Solid Connection Cross Section
0.5 mm²
Connection Data Sheath Strip Length
25 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm

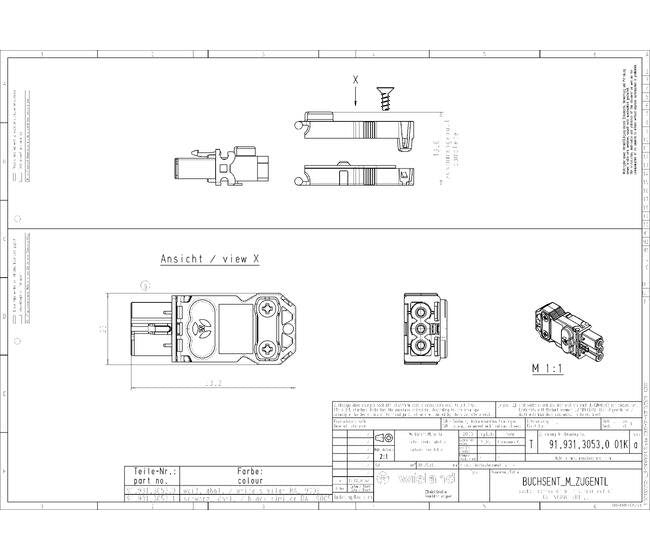

Dimensions Height
13.8 mm
Dimensions Length
53.2 mm
Dimensions Width
23 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
L | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
GST15I3S B1 ZR1W SW
General Number Of Poles
3
General Pollution Degree
2
General Rated Current
16 A
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.058 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Silver-Plated
Model Connection Type
Female
Model Degree Of Protection Ip
IP20
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
