Wieland GST15I3S B1 ZR1W WS Indoor Connector
Wieland GST15I3S B1 ZR1W WS Indoor Connector
SKU:ELE-9ba1ba
High-quality 3-pole female indoor connector with secure screw connection, strain relief, and 16A current rating.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland GST15I3S B1 ZR1W WS Indoor Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland GST15I3S B1 ZR1W WS Indoor Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

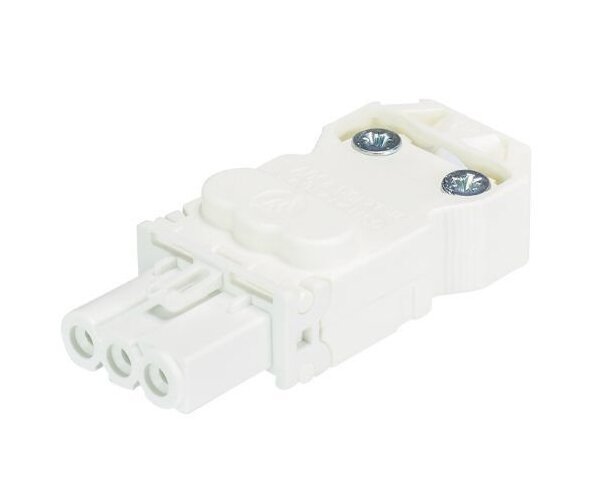

The Wieland GST15I3S B1 ZR1W WS Indoor Connector is a high-quality 3-pole female connector designed for indoor use, with a secure screw connection suitable for cable diameters ranging from 5.5mm to 9mm. It features a 250V mains coding in white, allowing for a maximum current of 16A. This connector offers strain relief in the same white color for added durability and safety. With a self-locking mechanism and mechanical coding, it ensures a reliable and safe electrical connection.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
9 mm
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Minimum Cable Diameter
5.5 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.5 mm²
Connection Data Minimum Solid Connection Cross Section
0.5 mm²
Connection Data Sheath Strip Length
25 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm

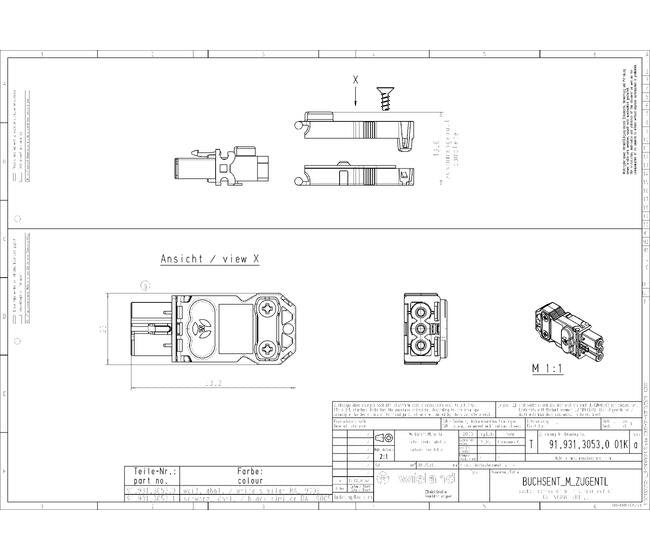

Dimensions Height
13.8 mm
Dimensions Length
53.2 mm
Dimensions Width
23 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
White
General Color Of Housing Inclusive Strain Relief
White
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
L | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
GST15I3S B1 ZR1W WS
General Number Of Poles
3
General Pollution Degree
2
General Rated Current
16 A
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.059 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Silver-Plated
Model Connection Type
Female
Model Degree Of Protection Ip
IP20
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
