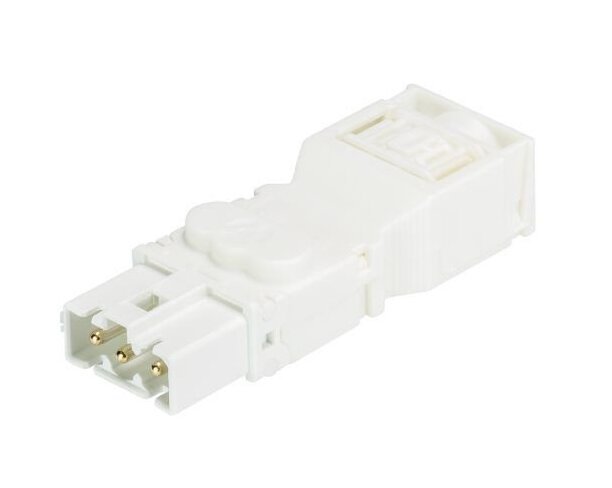

Wieland GST15I3S S1 ZR2 WS Male Electrical Connector
Wieland GST15I3S S1 ZR2 WS Male Electrical Connector
SKU:ELE-623c81
High-quality 3-pole male connector with toolless strain relief. Rated 16A/600V. RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland GST15I3S S1 ZR2 WS Male Electrical Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland GST15I3S S1 ZR2 WS Male Electrical Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland GST15I3S S1 ZR2 WS Male Connector is a high-quality 3-pole connector designed for indoor electrical connections. With a rated current of 16A and a maximum rated voltage of 600V, this connector ensures reliable power transmission. It features toolless strain relief for cable diameters ranging from 5.6mm to 11mm, making installations easy and secure. The white color design and self-locking mechanism enhance visibility and safety. Compliant with RoHS standards with exceptions, this connector is ideal for both consumer and institutional applications.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
11 mm
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Minimum Cable Diameter
5.6 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.5 mm²
Connection Data Minimum Solid Connection Cross Section
0.5 mm²
Connection Data Sheath Strip Length
32 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm
Dimensions Height
14 mm
Dimensions Length
65.4 mm
Dimensions Width
23 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
White
General Color Of Housing Inclusive Strain Relief
White
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
L | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
CONNECTOR GST15I3S S1 ZR2 WS
General Number Of Poles
3
General Pollution Degree
2
General Rated Current
16 A
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.07 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Silver-Plated
Model Connection Type
Male
Model Degree Of Protection Ip
IP20
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
