Wieland GST15I4S S1 ZW1 SW Male Electrical Connector
Wieland GST15I4S S1 ZW1 SW Male Electrical Connector
SKU:ELE-f074d5
High-quality Wieland GST15I4S S1 ZW1 SW Male Connector for indoor electrical applications. Rated at 600V/16A, with strain relief and coding features. RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland GST15I4S S1 ZW1 SW Male Electrical Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland GST15I4S S1 ZW1 SW Male Electrical Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

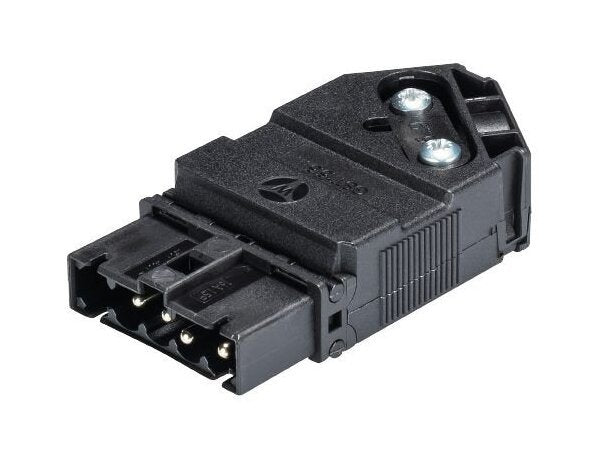

The Wieland GST15I4S S1 ZW1 SW Male Connector is a high-quality 4-pole connector designed for indoor use. With a maximum rated voltage of 600 V and a rated current of 16 A, this connector is ideal for various electrical applications. It features a strain relief mechanism for secure cable connections, mechanical coding for easy identification, and self-locking capability. The connector's housing is made of halogen-free polyamide, ensuring safety and durability. Compliant with RoHS standards, this connector meets the requirements of environmentally-conscious projects.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
11.5 mm
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Minimum Cable Diameter
6 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.5 mm²
Connection Data Minimum Solid Connection Cross Section
0.5 mm²
Connection Data Sheath Strip Length
32 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm

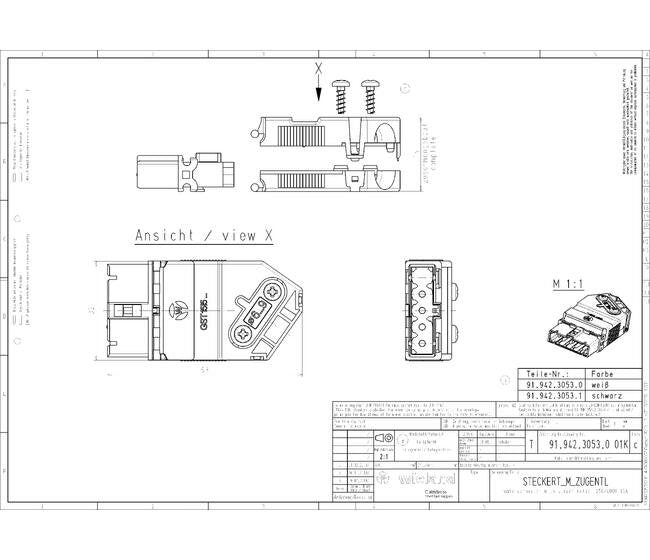

Dimensions Height
15 mm
Dimensions Length
63 mm
Dimensions Width
32.6 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
1 | 2 | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
CONNECTOR GST15I4S S1 ZW1 SW
General Number Of Poles
4
General Pollution Degree
2
General Rated Current
16 A
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.107 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Silver-Plated
Model Connection Type
Male
Model Degree Of Protection Ip
IP20
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
