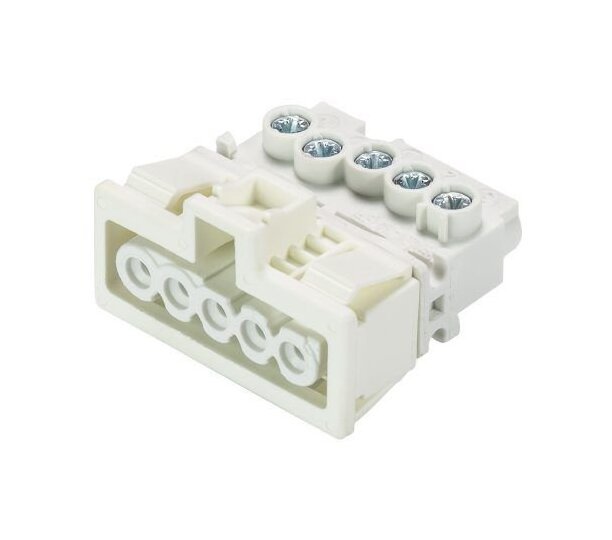

Wieland GST15I5S B1 R W WS Electrical Connector
Wieland GST15I5S B1 R W WS Electrical Connector
SKU:CIR-a97d8f
Reliable 5-pole device connector with 16A current, white color coding, and RoHS compliant
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland GST15I5S B1 R W WS Electrical Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland GST15I5S B1 R W WS Electrical Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland GST15I5S B1 R W WS Electrical Connector is a reliable 5-pole device connector designed for industrial use. With a rated current of 16 A and maximum rated voltage of 250/400 V, this connector ensures secure electrical connections. It features self-locking functionality, white color coding for easy identification, and a robust polyamide housing. The screw connection type and snap-in design make installation quick and hassle-free. Compliant with RoHS standards, this connector is a trusted choice for demanding electrical applications.
Product Specifications
Classification Eclass 81 Classification
27440602
Classification Etim 40 Classification
EC002566
Classification Etim 50 Classification
EC002566
Classification Etim 60 Classification
EC002566
Classification Etim 70 Classification
EC002566
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.5 mm²
Connection Data Minimum Solid Connection Cross Section
0.5 mm²
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm
Dimensions Height
19.6 mm
Dimensions Length
31.2 mm
Dimensions Width
34.6 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
White
General Color Of Separate Adapter If Present
White
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
1 | 2 | 3 | N | PE
General Maximum Rated Voltage
250 V | 400 V
General Mechanical Coding
Code 1
General Model
DEVICE CONNECTOR GST15I5S B1 R W WS
General Pollution Degree
2
General Rated Current
16 A
General Rated Impulse Voltage
4 kV
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.058 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Angle Of Plug
Straight
Model Built In Component
Snap-In
Model Connection Type
Screw Connection
Model Connector Type
Female
Model Degree Of Protection Ip
IP20
Model Thickness Of Housings Electrical Device
1.5 mm
Model Thickness Of Housings Electrical Device 2
0.5 mm
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
