High-quality Wieland GST15I5S S1 ZR1 W PB01 Indoor Connector with 5 poles, male connection, and strain relief for secure indoor electrical applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland GST15I5S S1 ZR1 W PB01 Indoor Electrical Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland GST15I5S S1 ZR1 W PB01 Indoor Electrical Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland GST15I5S S1 ZR1 W PB01 Indoor Connector is a high-quality 5-pole male connector designed for indoor use. With a screw connection and a coding mains of 250V, this connector is ideal for electrical applications requiring a rated current of 16A. The strain relief feature ensures secure connections, while the pastel blue color adds a visual coding element. Made of durable polyamide housing material and copper zinc contacts, this connector meets RoHS standards and offers IP20 protection. With precise dimensions and compliance with industry-specific certifications, this connector is a reliable choice for both consumer and institutional buyers.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
12.5 mm
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Minimum Cable Diameter
8.5 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.5 mm²
Connection Data Minimum Solid Connection Cross Section
0.5 mm²
Connection Data Sheath Strip Length
45 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm

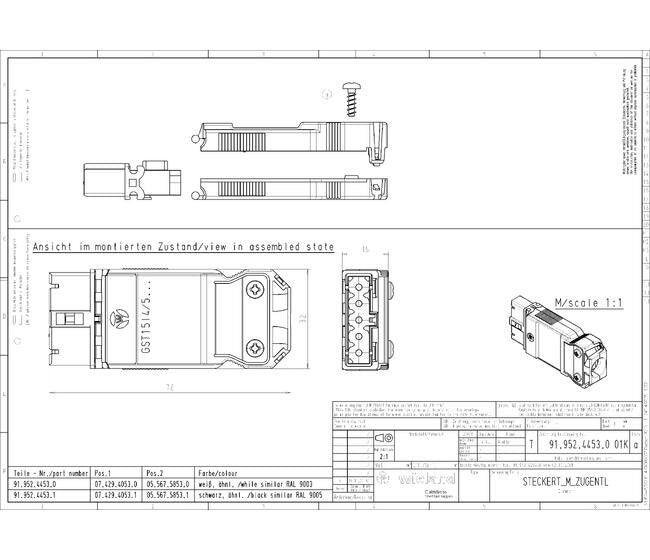

Dimensions Height
15 mm
Dimensions Length
78 mm
Dimensions Width
32 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Pastel Blue
General Color Of Housing Inclusive Strain Relief
White
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
D1 | D2 | L | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Yes
General Model
GST15I5S S1 ZR1 W PB01
General Number Of Poles
5
General Pollution Degree
2
General Rated Current
16 A
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.11 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Silver-Plated
Model Connection Type
Male
Model Degree Of Protection Ip
IP20
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
