Wieland GST15I5S S1 ZW1 W PB01 5-Pole Indoor Connector
Wieland GST15I5S S1 ZW1 W PB01 5-Pole Indoor Connector
SKU:ELE-496561
High-quality Wieland GST15I5S S1 ZW1 W PB01 5-pole indoor connector for efficient electrical connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland GST15I5S S1 ZW1 W PB01 5-Pole Indoor Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland GST15I5S S1 ZW1 W PB01 5-Pole Indoor Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

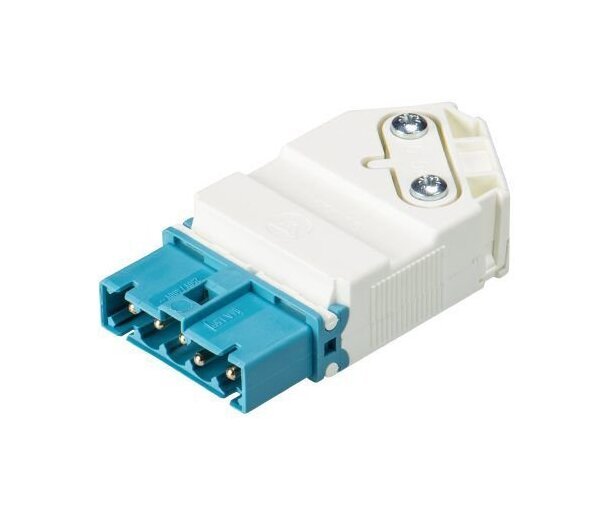

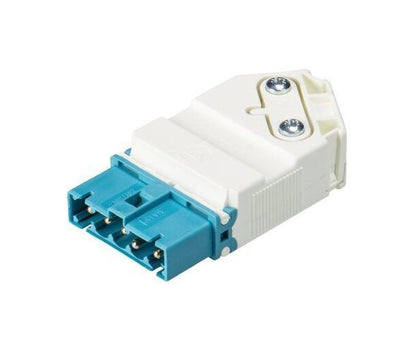

The Wieland GST15I5S S1 ZW1 W PB01 Indoor Connector is a high-quality electrical connector designed for indoor use. This 5-pole male connector features a screw connection (angled) suitable for cable diameters ranging from 6mm to 11.5mm. With a maximum rated voltage of 600V and a rated current of 16A, this connector ensures reliable performance. The strain relief feature in white enhances cable management, while its pastel blue color allows for easy coding. Compliant with RoHS and REACH-SVHC regulations, this connector meets key industry standards for environmental sustainability.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
11.5 mm
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Minimum Cable Diameter
6 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.5 mm²
Connection Data Minimum Solid Connection Cross Section
0.5 mm²
Connection Data Sheath Strip Length
32 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
8 mm

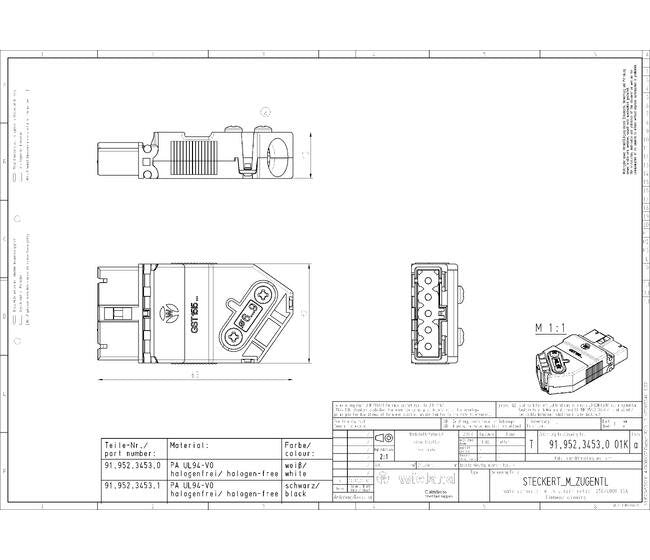

Dimensions Height
15 mm
Dimensions Length
63 mm
Dimensions Width
32.6 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Pastel Blue
General Color Of Housing Inclusive Strain Relief
White
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
D1 | D2 | L | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Yes
General Model
GST15I5S S1 ZW1 W PB01
General Number Of Poles
5
General Pollution Degree
2
General Rated Current
16 A
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.108 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Silver-Plated
Model Connection Type
Male
Model Degree Of Protection Ip
IP20
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
