Wieland GST18I3 Mounting Frame
Wieland GST18I3 Mounting Frame
SKU:ELE-6eb255
Securely mount GST18i3 connectors with ease using the Wieland Mounting Frame. Compliant with RoHS and REACH-SVHC standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland GST18I3 Mounting Frame
$29.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I3 Mounting Frame
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

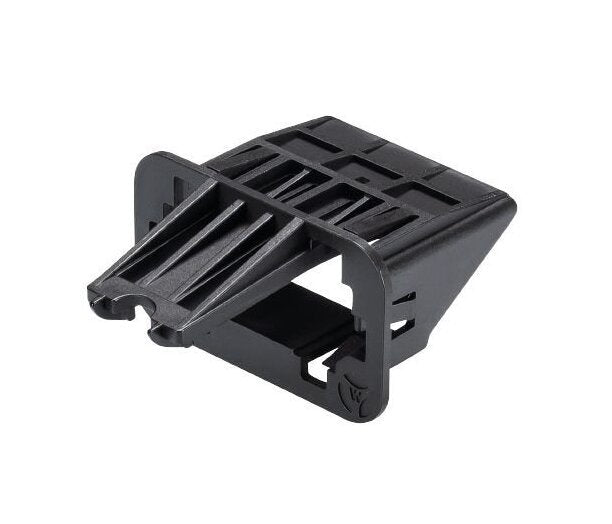

The Wieland GST18I3 Mounting Frame is designed to securely snap in GST18i3 connectors into housing or furniture. With options for screw or spring connection and accommodating pre-assembled cables, this mounting frame ensures easy and stable installation. Featuring dimensions of 54.9mm x 44.4mm x 26.7mm and a sleek black color, it offers reliability and durability. Compliant with RoHS and REACH-SVHC standards, this mounting frame guarantees safety and environmental responsibility.
Product Specifications
Classification Etim 50 Classification
EC002863
Classification Etim 60 Classification
EC002863
Classification Etim 70 Classification
EC002863
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Brands
Wieland
Technical Data Color
Black

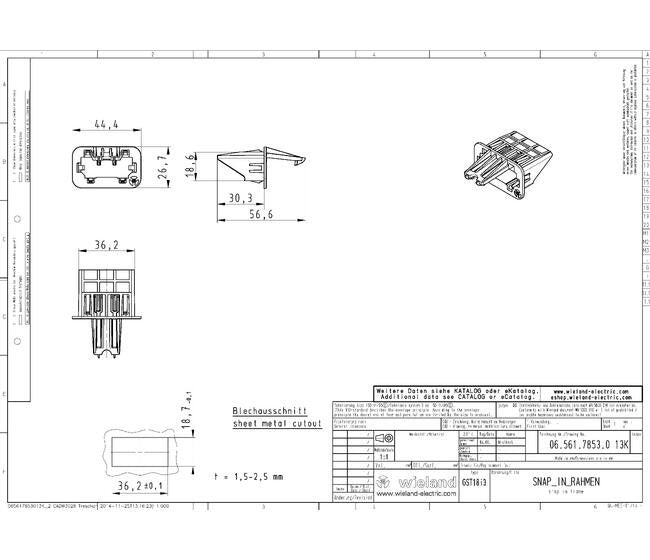

Technical Data Height
26.7 mm
Technical Data Length
54.9 mm
Technical Data Model
GST18I3 SW
Technical Data Wall Thickness
1.5 to 2.5 mm
Technical Data Width
44.4 mm
