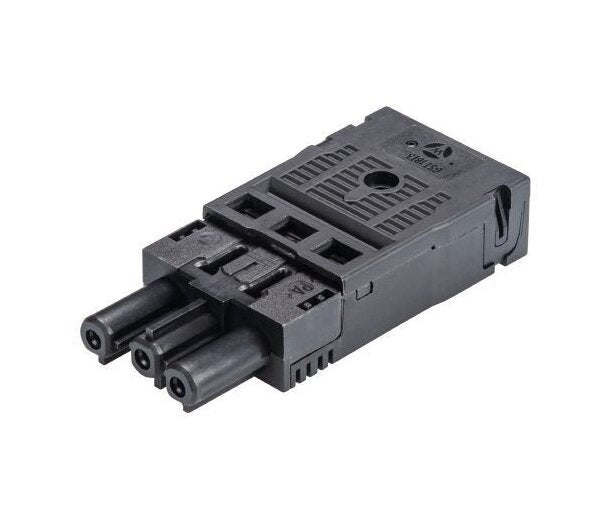

Wieland GST18I3F 3-Pole Female Electrical Connector with Strain Relief - Black
Wieland GST18I3F 3-Pole Female Electrical Connector with Strain Relief - Black
SKU:ELE-392686
High-quality Wieland 3-pole female electrical connector for indoor use. Max voltage: 600V, Rated current: 20A. RoHS compliant.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Wieland GST18I3F 3-Pole Female Electrical Connector with Strain Relief - Black
$15.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I3F 3-Pole Female Electrical Connector with Strain Relief - Black
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland GST18I3F B2 ZR1 SW Electrical Connector is a high-quality 3-pole female connector designed for indoor electrical connections. With a maximum rated voltage of 600V and a rated current of 20A, this connector ensures reliable electrical connections. It features a spring force connection, self-locking mechanism, and black color coding for easy identification. The connector is compliant with RoHS standards, offering a halogen-free and environmentally friendly solution. With robust housing material and copper zinc contacts, this connector provides durability and superior performance.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
10.3 mm
Connection Data Maximum Fine Stranded Connection Cross Section
1.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Minimum Cable Diameter
7.8 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm²
Connection Data Sheath Strip Length
45 mm
Connection Data Terminations Per Pole
2
Connection Data Wire Strip Length
9 mm

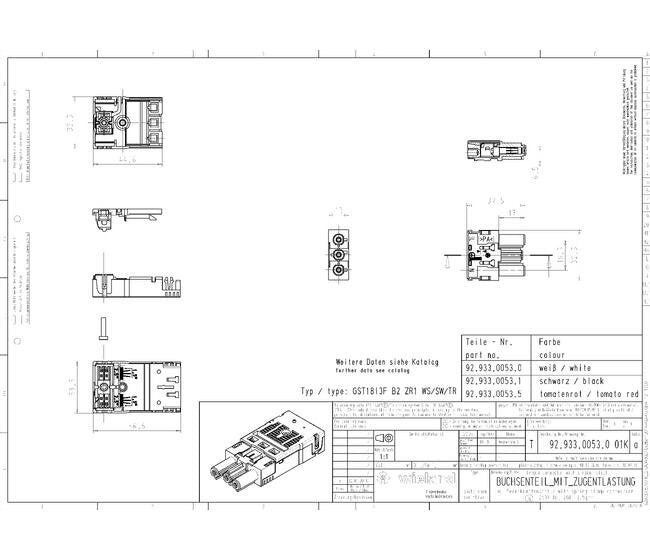

Dimensions Height
15.5 mm
Dimensions Length
75 mm
Dimensions Width
32.5 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
L | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
CONNECTOR GST18I3F B2 ZR1 SW
General Number Of Poles
3
General Pollution Degree
2
General Rated Current
20 A
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.12 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Tin-Plated
Model Connection Type
Female
Model Degree Of Protection Ip
IP20
Note Remark To Type Of Connection
fine- and multi stranded wires require a ferrule or a ultrasonically compacting
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
